T-Board Track Seat Fitting Tool

The T Board Track from Tillett has been developed to make accurate seat fitting quicker and easier either in the workshop or track side. It drops into place without having to lift the chassis and is designed to work around obstructions such as battery boxes and fuel lines. The reversible nature means it suits right or left hand engine chassis.

• Speeds up the seat fitting process whilst maintaining accuracy
• Suitable for 28mm, 30mm and 32mm diameter chassis tubing
• Suitable for right or left hand engine karts
• Drops into position without having to lift the chassis
• Allows accurate seat fitting time after time

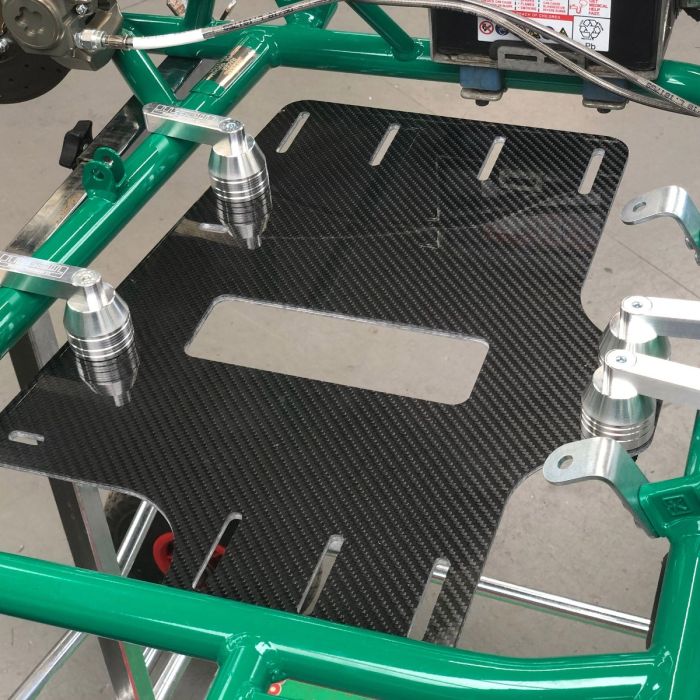

The T Board Track comprises of a reversible, rigid carbon plate with four magnetic height setting bar assemblies. These hold the plate in the position to set the low point of the seat. A carbon magnetic slide rule accurately measures the distance of the seat back from the axle. Once in position this can be locked to quickly obtain the same position next time a seat is fitted.

Often, kart seat positions are chopped and changed fairly regularly dependent on the circuit or conditions at the time. If these conditions are replicated in a season, the Tillett T Board Track Seat fitting tool is ideal as users can identify previous fitments according to their seat positions/orientation (when previously manually logged) and install the seat to these specifications once again.

The Tillett seat fitting tool not only provides a consistent seating position but saves time in getting to that position. The Tool ensures accuracy where every millimetre counts and can be used to position seats in relation to axles on other kart chassis.
