Upgrade Kit for Junior MAX to Senior MAX EVO

titleblue
SKU:
check-circle Available - Immediate dispatch
arrow-down Customise and Add to Cart
Trustpilot

Upgrade Kit 125 Max Evo. Contains all parts for retrofitting engine from version 125 JUNIOR MAX evo or non evo to 125 MAX evo. (E-rave) apart from E-Box (ECU) 125 MAX evo.

Items included in the kit:

Item No. Item Description QTY
201576 Power Valve Pressure Line 420mm 1
216135 Piston Pin 1
230261 O-Ring Power Valve 6X2.5 Nbr 70 Red 1
239952 Power Vale Compression Spring 48.5/0.8 Mm 1
241220 Adjustment Screw 1
250232 Gasket for E-Rave Power Valve 1
253385 Valve Rod Housing Kpl. 1
260723 Exhaust Valve Green Bellow 1
295500 Piston Assembly 53.93/53.94mm 1
296161 Gasket Set Assembly Cylinder 1
413531 Rotax Racing Cylinder Ni Si C Plated - Single Core Cylinder Senior Max 1
430220 O-Ring 15.9-2.3 1
441358 Stud M6X52.5 Mk 1
660543 Check Valve 1
660550 T-Fitting 1
660574 Pressure Line 280 Mm 1
664630 Solenoid Valve 1
838255 Hose Spring 70-1.7-0.3 1
840514 Allen Screw Iso 4762 - M5X16 - 8.8 2
840866 Allen Screw Iso 4762 - M6X25 - 8.8 2
842032 Lock Nut M5-6.6 2
845020 Spring Washer B6 2
854440 Exhaust Valve Piston 1
866718 Tie Wrap 94X2.5 Mm 1
911559 Valve Cover 1
927574 Washer 5.3 Din 125 2
930500 Oil Seal Power Valve 6X11X3/4.5 1
932027 Needle Cage for Top End K 15X19X20 1
939281 Hose Spring 134-3.0-0.65 Soldered 1
956305 Impulse Nozzle 1
241271 Taptite Screw M5x25 2
253721 Exhaust Valve Blade cw coating 1
974562 Tube A5X8/2500mm 1

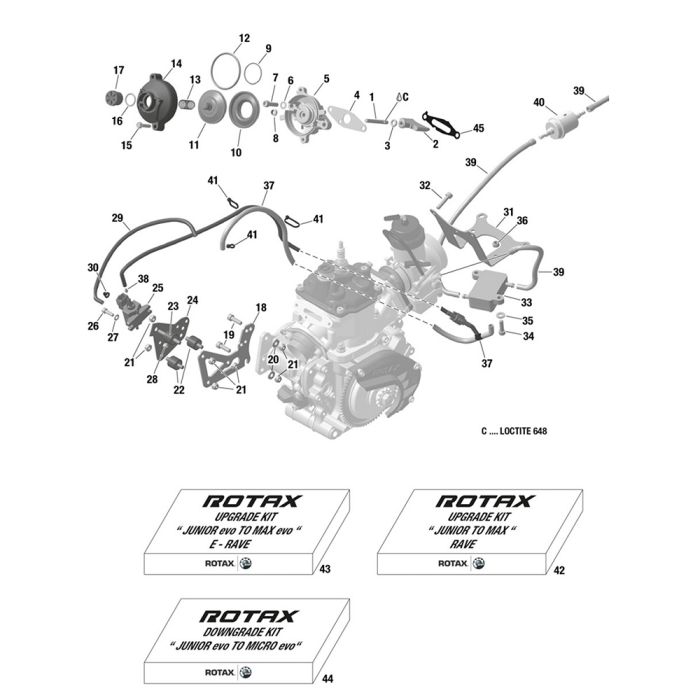

Number 42-43 in parts diagram

Electronic Box (ECU) 125 MAX evo not included

Rotax products are not available for dispatch outside Ireland

Brand Rotax
Weight 0.500000
