Twin 044 Fuel Pump Outlet Manifold

Machined from Billet 6061 Aluminium, this assembly kit enables two 044 (or equivalent) fuel pumps to connect using 1 outlet minimalising the amount of hose connections needed.

The outlets of the fuel pumps simply slot into the 2 holes which utilising the fuel pumps check valves, preventing back flow which can damage the pumps and reduce lifespan.

The manifold unit has an option for either a inline facing outlet (Middle Port) or through a 90 degree fitting (end port). Both of these ports are AN / JIC 8 threads and where only one is usually used, the other can be blanked off.

A double fuel pump mounting bracket is also available to provide the perfect centre spacing needed.

Hole centres: 76mm

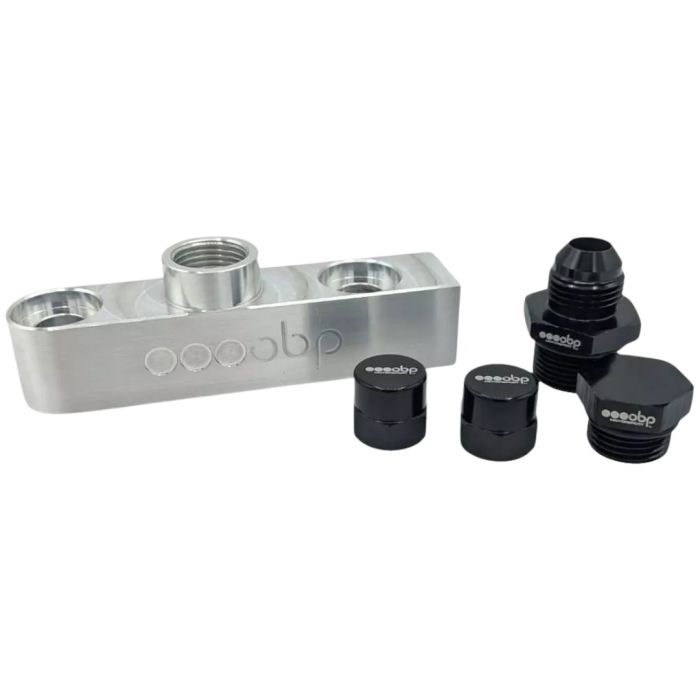

Included in this kit is the following parts:
2 x M12x1.5 Blanking Caps
2 x M12 Crush Washers
1 x AN / JIC 8 Blanking Plug
1 x CNC Manifold
1 x AN / JIC 8 to AN / JIC 6 ORB Adaptor (Please contact us if you require a different size adaptor, other sizes are available)

NOTE: THE IMAGES SHOW 2 X OBP 044 FUEL PUMPS, THESE ARE NOT INCLUDED AND IS ONLY SHOWN FOR DEMONSTRATION PURPOSES ONLY.
