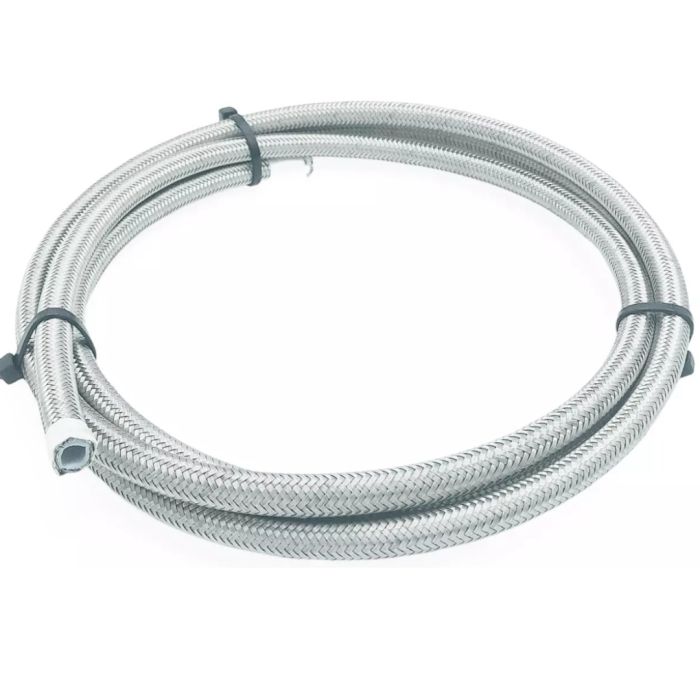

PTFE Lined Stainless Steel Braided Hose

The PTFE hose is a more extreme version of the CPE hose and most suited to the motorsport industry. Offering increased operating temperatures, further weight saving benefits and a PTFE, smooth bore inner lining on the hoses.

The hose is supported using the same stainless steel outer braid found in the CPE hose, but is further improved by containing a PTFE inner lining as opposed to rubber. By doing so, this introduced multiple advances when compared to the traditional rubber lining and can transfer any type of fluid whilst working within a broad range of temperature changes.

Recommended for Brake, E85, Alcohol, Nitro, Transmission, Clutch, Nitrous, power steering, oils, hydraulics, and vacuum applications.

Min Temperature: -70°C
Max Temperature: 250°C

PTFE also offers the unique advantage of being vapor-free, making it perfect for use inside the cabin.

SOLD PER METER

AN4 PTFE Hose

• ID – 4.83mm
• OD – 8.0mm
• Operating Pressure – 4,000psi
• Burst Pressure – 12,000psi
• Weight Per M: 0.105kg

AN6 PTFE Hose:

• ID: 8.13mm
• OD: 10.92mm
• Operating Pressure: 3000psi
• Burst Pressure: 10,000psi

AN8 PTFE Hose:

• ID: 10.67mm
• OD: 13.72mm
• Operating Pressure: 2500psi
• Burst Pressure: 8000psi

AN10 PTFE Hose:

• ID: 12.95mm
• OD: 16mm
• Operating Pressure: 2000psi
• Burst Pressure: 6000psi

AN12 PTFE Hose:

• ID: 16.26mm
• OD: 19.30mm
• Operating Pressure: 1000psi
• Burst Pressure: 4000psi
