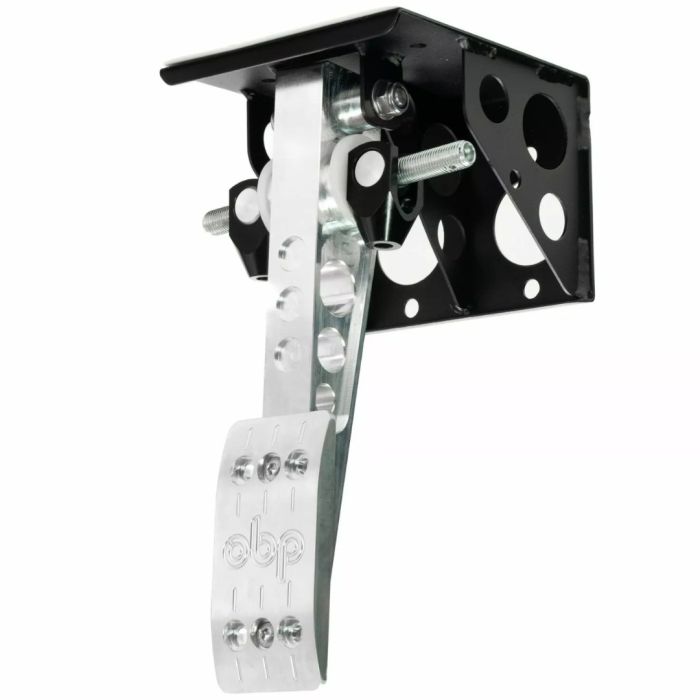

Pro-Race V2 Top Mounted Hanging Brake Pedal Unit

Lightweight range dual brake master cylinder bias controlled pedal boxes have been designed to offer the driver the highest level of efficiency in this critical area. The CNC Machined Pedals, together with low friction and high-quality oil impregnated spherical bearings set new standards in pedal box design. The pedal pads are also CNC Machined Billet aluminium which can be adjusted in multiple positions to allow the driver to have different pedal ratio options and also comfort.

The base box frame has been developed out of 2.5mm Mild Steel to provide an improved robustness and strength which is designed to mount up against the bulkhead to provide further support. On the rear of the frame, it has 2 x mounting points for your brake master cylinders (will fit the majority of master cylinders on the market).

The mix of Mild Steel Cradle and Aircraft Grade T6061 Aluminium Pedals, allows for excellent rigidity, enhanced feel and bullet proof construction.

Product Information:

• Fitment: Top Mounted Bulkhead Fit
• Pedal Ratio: 4.9:1 / 5.24:1
• Weight: 1.2kg
• Bias Bar Included
