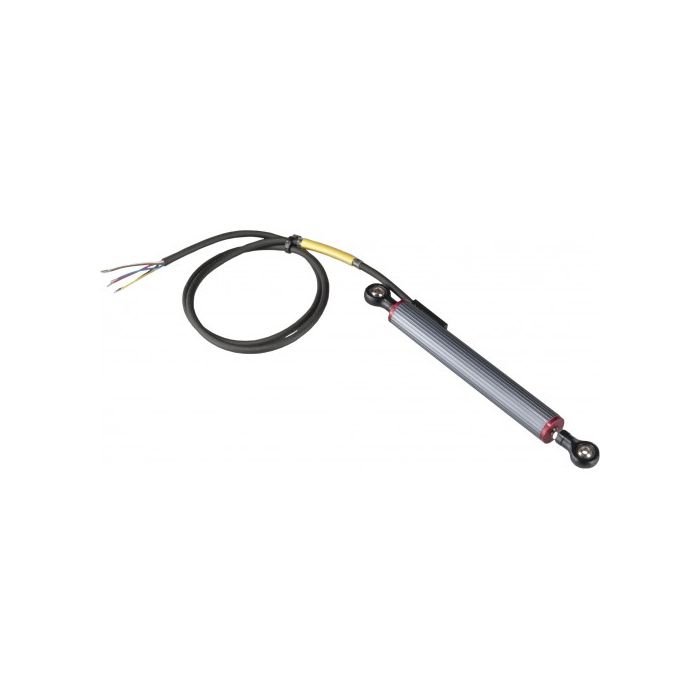

OBP Motorsport Dual Signal Linear Potentiometer

This Linear Potentiometer is designed to withstand the harsh environment in a Motorsport applications. Using proven ‘conductive plastic’ technology, the sensors offer high performance and reliability.

Specifications:

• Maximum Supply Voltage – 40 VDC,
• Resolution – Essentially Infinite,?
• Repeatability - ?≤0.01mm,?
• Operational Speed - 10 M/s max,
• Mechanical Life - ?> 25 Million Cycles,
• Recommended Wiper Current - ?< 10μA,
• Independent Linearity - ?≤ +/- 0.5%

Connection & Output Details

6 Core Cable

Track 1

• Red = +V
• Black = 0V
• Yellow = Signal

Track 2

• Brown = +V
• Blue = 0V
• White = Signal

Displacement

• Fully Closed = +Vmax
• Fully Open = 0V

The displacement signals may be reversed by swapping the connections to the Red & Black wires or Brown & Blue wires, providing +Vmax output when Full Open & 0V when fully closed.
