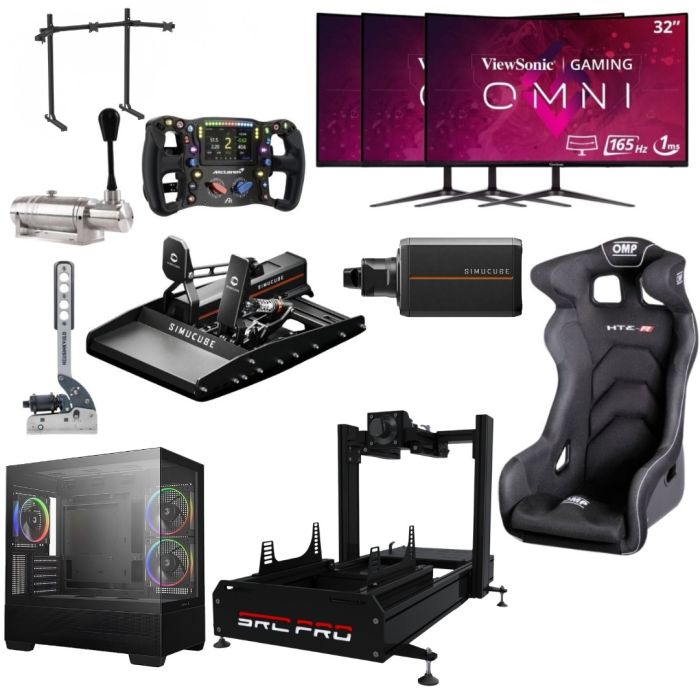

Simulator Ultimate Bundle

Whats Included

1) Simucube 2 Pro

New Updated Packaging, Quick Release now sold seperately, CLICK HERE.

High-end  Simucube 2 Pro force feedback wheel base will make you forget you are in simulation, it will be the golden standard for years among e-sport pros and gear heads who demand the the best price / performance ratio.

With it's 25 Nm rated torque it is more than powerful enough to give you deep immersion with any track, car and condition, combined with exceptionally high torque response rate custom made Pro motor, the sharpest kinks will be delivered at a clarity not seen in Direct Drive scene before.

Torque response rate is adjustable to driver's preferences.

According to our testing this motor surpass the capabilities of every Direct Drive motor of the past.

Simucube 2 power MOSFETs are rated over 2X their actual need to make them virtually immortal.

The new dual CPU 216 MHz processor features superscalar ARM architecture, making it effectively four times faster than the 72 MHz processor of IONI drive in Simucube 1.

Included with SC2 Pro wheel base:

• Power Supply
• All required cables
• Standard Torque Off Button
• Fixings for Wheel Base
• Pin for Simucube Quick Release

Does NOT include: Simucube Quick Release Side Parts

Technical specifications and features:

Ultra low latency mode: Yes

Simucube Wireless Wheel™ support Yes

Simucube Quick Release™ Yes

Adjustable torque slew rate limit: Yes

Non-linear force saturation: Yes

Factory calibration Multi torque cogging + ripple

Max torque 25 Nm

Max torque slew rate 8.0 Nm/ms

Angle sensor resolution 22 bit

Isolated surge protected USB port: Yes

Torque Off button Standard (premium optional)

Power supply 1 x 480W

External BLE antenna

Physical size 130 x 130 x 270 mm

Fixing holes M8 x 4 pcs

Screw bolt pattern dia 145 mm

Flange centering hole dia 110 mm

Warranty period: 24 Months

2) McLaren Artura Wheel - Ultimate USB

General Information

• 300mm diameter
• 6 x 70 mm bolt pattern
• Robust, shielded coiled cable with industrial Binder M16 connector (USB version only)
• QR spacer may be required to create sufficient clearance to the wheelbase (connector length approx. 64mm)
• Quick release not included except chosen at check-out
• Mass: 1520g

Scope of delivery:

• Ascher Racing McLaren Artura Ultimate sim racing steering wheel
• Ascher Racing McLaren sticker set
• M5 x 12 mm stainless screws to mount QR

Technical Details

McLAREN ESPORTS WHEEL

• Based on the official McLaren Artura GT4 wheel
• Uses identical components of real-racing steering wheel
• Esports optimized functionality
• Maximum grip level from ergonomically improved rubber grips and 300 mm wheel diameter used in the real race car

USB WHEEL

• Telemetry-based and animated RGB lighting
• Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotaries possible
• Non-linear clutch curves adjustable (various predefined progressive/degressive/s curves selectable or individual definition
• Encoder pulse width adjustable (defines how long the button is triggered per click)
• Selection of the analog input mode (e.g., for clutches) & quick calibration of the analog axes directly on the steering wheel without the use of software
• Low power consumption of only max. 500mA according to USB specification
• No power injection necessary
• Unrestricted operation with all PC mainboards
• Unrestricted operation with Asetek QR system

INTEGRATED 4” DASHBOARD & 21X RGB LED SHIFT LIGHTS

• 4" screen with high resolution
• 21x RGB LEDs (16 million colors)
• Official SimHub integration
• 16bit colors, 350 lm brightness
• Touch operation possible
• Seamlessly integrated

OVER 100 INPUTS

• 14 x RGB illuminated push buttons (16 Mio. colors); individually adjustable coloring and tactile feedback
• 4 x thumb encoder
• 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
• 2 x 12-position rotary switches
• 2 x Gen6 magnetic and silenced motorsports double paddle shifters
• 2 x motorsports clutch paddles with electronic bite-point calibration
• Retrofittable single shifter

HIGH-QUALITY FINISH

• Machined out of automotive aluminum
• Black anodized and laser engraved
• Brushed front plate surface finish
• Glass bed blasted paddle surface finish

GEN6 MAGNETIC DOUBLE PADDLE SHIFTERS

• New generation of magnetic shifters developed from scratch for motorsport applications
• Machined and anodized out of automotive aluminum
• Proven strong snap-action force
• Silenced by damped rubber stops on both ends with unlimited precision due to tight tolerances
• Free of play due to preloaded ball bearings
• Marginal hysteresis for noise-free and precise gear changes
• No switches inside –extremely durable hall sensor
• Unlimited interchange possibilities due to identical mounting points for double shifter paddles

LASER-ETCHED BUTTONS

• Laser-etched button caps with most common symbols available
• Easily interchangeable due to two-piece-design – no need to open the wheel
• Additional labels for various common steering wheel inputs

Compatibility

SC (WIRELESS)

• Simucube 2 Sport
• Simucube 2 Pro
• Simucube 2 Ultimate

USB (Bald verfügbar, Updates gibt es hier)

• Fanatec
• Asetek
• Simagic
• VRS Direct Force
• Accuforce
• U.v.m.

3) SRC Pro V2 Chassis

The SRC-PRO V2 is the latest version of the SRC-PRO rig of Sim Race Components. With an even more refined design and special details, the rig is entirely made of 45x135mm anodized aluminium profiles made in Italy in silver or matt black color that guarantee maximum stability as well as a great visual impact. The new 10 mm aluminum back plate with milled SRC logo, in addition to increase the overall rigidity of the structure, allows the adjustment of the seat and hides the fixing screws from view. The components of the pedals structure assembly have also been completely redesigned: the new aluminum uprights and the pre-drilled aluminum plate allow infinite adjustments and guarantee maximum resistance to any type of stress. Following accessories are included with the rig: rubber feet, seat kit and universal wheel plate. The SRC-PRO is suitable for drivers up to 200 cm of height.

Main features
Chassis length: from 1300 to 1450 mm
Chassis width: 690 mm
Wheel profiles height: 750 mm

Compatible devices
Fanatec wheels and pedals
Thrustmaster Wheels and pedals
Directdrive wheels (Osw, Bodnar, Accuforce)
Heusinkveld and other special pedals

Available accessories
Keyboard kit
Mouse kit
Universal or Fanatec shifter kit
VR/Headset kit
VR/Sensor kit
Monitor supports
Integrated monitor supports
Horizontal wheel desk
Front wheel desk

4) BDH H1SQ Dual Mode Mechanical Shifter

After two years of dedicated development, the H1SQ combines the mechanics of the renowned H1 “Bazooka” Shifter with the BDH Race SQ sequential shifter into one exceptional product. This innovative dual mode shifter offers two independent mechanisms aligned into one chassis, providing high-end race car gearing for Professional Sim use.

Testing:

The H1SQ has undergone extensive testing, with hundreds of hours invested and 12 significant redesigns over the past two years, ensuring its quality and performance. The feedback from the market has played a crucial role in shaping the creation of the H1SQ.

Key Features:

• Dual Mode Shifter comprising of the H1 “Bazooka” and the BDH SQ Sequential Shifter
• BDH Electronics
• Mechanical Motorsport Feedback
• Professional Grade Form Factor
• Hand Built in York, England
• No Compromise

Product Details:

Materials:

• HE260 Aerospace Specification Machined Aluminium
• High Tensile Steel
• WRC Nylon Quaife Style Gear Knob
• Motorsport Linear Bearings
• EN8 High Carbon Steel Shear parts, to 40 Tonnes strength
• High Tensile Internal Steel Fasteners
• Bronze Bushing
• Graphite Self Lubricating Bronze Oil light Guides
• High Quality Die Square Section Springs

Precision Made Internals:

• Centralising CAM Mechanism
• True, Motorsport Grade, PTFE lined, Spherical Bearing
• Radiused 303 Wear resistant Stainless Steel Gate Pegs

• Precision Made Centralising Anchor Point
• Engineered Gear Gate Selector
•  equal wear free spinning ball detent

Front:

• Aluminium Front Plate
• Launch Edition Branded front plate *first 220 Units Only
• High Tensile steel Fork
• Enforced Ground Crank Pin

Electrics:

• BDH Electro contactless hall sensor boards
• BDH Processor and software
• Independent Dual Mode functions

Externals:

• Adjustable pressure high strength detent Gauge with double locking pre-set function
• Rotary Dual Mode Collar, engaging H Pattern or Sequential Modes

• 360 Degree USBC mounting

H Pattern Mode:

• Independent H1 Mechanism
• 8 Gear Gates
• Configurable 6 Gears, 7th gear and Reverse positioning
• Adjustable tactile feel technology

Sequential Mode:

• Independent SQ Mechanism
• Sequential Mode lateral Lock
• Positive Forth and Aft Movement
• Up down gear return
• Adjustable tactile feel technology

Mounting:

• Independent Shifter Body
• 360 Degree Multidirectional Mounting
• Standard BDH Clamp and base plate mounting
• M8*1.25 Pitch & T nuts
• *Sandwich Adapter Plate available as an optional extra
• *Supplied M10x 1.5 threaded Rally knob can be switched to a knob of your choosing

5) Sim Handbrake V2

The all new Heusinkveld Sim Handbrake is a versatile, pressure sensitive USB simulator handbrake using load cell technology. Using Heusinkveld elastomer springs, it has a firm and adjustable progressive feel with up to 22kg of force at the lever (120kg load cell). Complete freedom to create custom output curves with Heusinkveld SmartControl. Adjustable horizontal or vertical lever with fine-tune adjustment. Comes with an optional adapter plate with yaw adjustment for aluminium profiles.

“When in doubt, flat out.”

When rallying or drifting, you want full control. The new Heusinkveld Sim Handbrake is a highly adjustable, pressure sensitive USB handbrake using load cell technology. A wide range of options to set your preferred mechanical feel, complete freedom to shape the output curve using Heusinkveld SmartControl. A versatile, high quality handbrake system.

Designed with CAD and FEA, all structural parts are CNC precision laser cut steel with a bead blasted or fine-structured powder coat finish. It is strong, stiff and durable.

Our new Sim Handbrake has retained the overall lever dimensions of its predecessor, yet can handle a higher force and does this with a much more compact base. This makes installation in your simulator much easier.

Adjustability

The Heusinkveld Sim Handbrake features a wide range of mechanical adjustments to set the handbrake up to your liking.

A 2-stage spring system provides resistance when pulling the lever. An initial metal coil spring simulates the pad-to-disc gap and/or slack on the handbrake cable. The travel and preload on this spring are adjustable. You can also remove this initial coil spring if you wish to do so.

The main loading on the brake is simulator by compressing the Heusinkveld proprietary elastomers, giving an unprecedented progressive brake feel. A total of 3 elastomers are provided in order to set a soft, medium or stiff handbrake feeling.

The lever can be set in a horizontal or vertical position. Per position there is a fine-tune adjustment up to 26 degrees to set the exact position of the lever.

If you use the included optional adapter plate (which allows for easy mounting onto aluminium profiles), you have up to 22,5 degrees of freedom to set the yaw of the handbrake. This can greatly enhance the ergonomics of your simulator, allowing you to pull the handbrake straight towards you from a multitude of mounting positions.

6) Simucube ActivePedal & Throttle

Simucube’s new ActivePedal is quoted as the “last pedal you will need” using it’s unlimited adjustability, repeatability, and simulator telemetry data-based force feedback effects, it adds a whole new dimension to racing.

• Configure as a brake, throttle, or clutch
• Maintenance free
• ABS feedback
• Force feedback
• Traction control
• 150kg brake pressure

Edit accurate physical pedal profiles for your different races. Pick your desired profile before the race starts and go. With the click of a button you can turn it into a brake, throttle, or clutch. Adjustable ABS and force feedback feel make this the best all around option.

Simucube’s unbeatable service and hardware means that the pedals are maintenance free with no rubbers, no messy oil, no springs, no hydraulic cylinders and no degrading parts to service and replace.

Simucube’s Active means it produces all pedal force with a motorized actuator and control algorithms. This is the opposite to passive pedals which rely on rubbers, springs or cylinders. Active control is the magic behind infinite adjustability and consistency.

Included :

• Simucube ActivePedal
• Power supply
• Simucube Link
• USB cable
• Ethernet RJ45 (Used to connect Simucube Link and ActivePedal)
• Fixing screws
• Torx allen key
• Quick start guide
• Stickers

Compatibility :

You can use any third-party pedals with Simucube ActivePedal. However, you won’t be able to use the ActivePedal software to adjust the throttle and clutch. You will need to use their native software.

7) Gaming PC PRO

Specifications

8) HTE-R Fibreglass Seat

Seat with black gel-coated shell. Perforated shell to enhance seat and back breathability built-in, padded head restraint high profile side bolsters for increased lateral support upholstered in lightly padded velour removable back, seat and leg cushions grip enhancing fabric on the shoulders, 5 seat belt openings (HANS compatible) side mounted (W type).

FIA 8855-1999 Approved

9) Universal Seat Sliders

OMP universal seat slider kit. Suitable For Sparco & OMP Seats. Enables seat to be adjusted forwards and backwards.

Bolt longitudinal distance: 270mm
Slide Travel: 145mm

Fixing bolts, nuts and washers included.

10) 32in. Curved FHD Gaming Monitor ( 3 Monitors)

 The ViewSonic VX3218-PC-MHD has a 32" Full HD screen with a 1500R curve, making games look bigger and more immersive. It has a fast 165Hz refresh rate, making game graphics very smooth. The design is clean and sleek, without the bulk of larger monitors, and the borderless display adds to the big screen experience.

With AMD Adaptive Sync, screen tearing and stuttering are nearly eliminated, providing fluid gameplay. The 1ms response time helps you react quickly in games. The monitor includes ViewSonic's ViewMode presets, which optimize screen performance for different activities like gaming, editing, or watching movies.

It also has DisplayPort and HDMI inputs for flexible connectivity with gaming and entertainment devices.

Specification Summary

11) 4th Monitor Stand Add-On

The SRC 4th monitor stand can be combined with all the triple monitor stand of Sim Race Components. The strong 5 mm of thickness steel plates guarantee maximum rigidity and stability to the support and allow to fix up to 32 inch monitors. Inclination, height and position can be adjusted. Please verify the weight of the monitor will be mounted on the stand. It is supplied with a 75x75 and 100x100mm Vesa Plate

12) Integrated Triple Monitor Stand

The SRC integrated triple monitor stand can be combined with all the Sim Race Components rigs. It is composed by 5 45x45 mm profiles, 6 steel plates of 5 mm of thickness laser cutted and powder coated in matt black color, 3 Vesa supports. Fixing elements included. The support is supplied with 75x75 and 100x100mm Vesa Plates. The strong 5 mm of thickness steel plates guarantee maximum rigidity and stability to the entire rig and allow to fix 3 monitors up to 34 inch. The 5 mm of thickness adjustement steel plates support the side monitors that can be adjusted with an opening angle between 20 and 60 degrees. Position, height, depth and inclination can be easily adjusted.

13) SC2 Quick Release Kit - Wheel Side

Upgraded version with 30mm spacer and 70mm wheel adapter and improved compatibility.
Simucube 2 Motors no longer are supplied with one of these QR Kits so every user will need one for each steering wheel you wish to use.

Becoming master of multiple race car classes is finally reality without a single compromise. Different kinds of wheels are rapidly and securely intercangeable thanks to solid-metal Quick Release and low-latency Wireless Wheel connection.

Precision machined full-metal Simucube Quick Release guarantees zero backlash and rock solid operation even under the extreme torques of direct drive wheel base. Guided rail design ensures perfect lock-in every time, and spring preloaded pin mechanism will ensure non-degrading tight coupling over thousands of swap cycles. Just like rest of Simucube,

SQR has been built to be virtually immortal.

The only practically wearing part, spring loaded pin mechanism, is made out of standard stock parts making it user serviceable.

14) ActivePedal Baseplate

The Simucube Baseplate is the perfect solution for those who want a seamless experience when mounting the Simucube ActivePedal and other third-party pedals.

Technical Details

• Weight: 4.2kg
• DImensions: 566mm x 391mm x 65mm
• Heel adjustable vertically: 25 mm

Pedal Compatibility

• Simucube Active Pedal
• Heusinkveld Ultimates+
• Simtrecs ProPedal GT
• Meca CUP 1
• VRS DirectForce Pro Pedals

Rig Compatibility

The Simucube Baseplate is compatible with aluminium profile rigs where profile or pedal position can be adjusted lengthwise.

• Simlab P1X
• Trak Racer rigs
• Next Level Racing Elite rigs

What's Included

• Simucube Baseplate parts. Needs assembly.
• Quick start guide

15) Adjustable Triple Monitor VESA Kit

Adjustable Vesa is made with 4mm steel plates, and a central block-bridge in cnc aluminum. It has a glossy black finish from the cataphoresis process.

The SRC adjustable vesa has infinite adjustments using just a single Allen key. No pieces are suspended, meaning the product has no vibration or bending.
Anti-vibration technology is included to eliminate noise even with extensive use.

Available in 75/100 as standard or 200 and 300 versions with additional plates.
Adjustable vesa kit consists of 3 vesa.

16) Cable Management Box for PC Case Stand

The SRC PC case support kit allows you to place the PC case or the console directly on the rig or monitor mounts for greater comfort and functionality. The stand kit can be mounted on the verical profiles of the rig itself or any of the monitor mount types. The kit of adjustable in width for optimal functionality.

The kit comprises of bent aluminium plates which are slotted to allow for width adjustment and all required nuts & bolts.

Compatible with all SRC Chassis and Monitor Mounts.

17) PC Case Stand Kit - Black

The SRC PC allows all cables to be housed in a 2mm thick folded steel box. The lower panel is pre-drilled to allow ventilation while the front panel is removable to allow easy acces to the interior of the compartment. A 40mm fan (not included) can be installed on the kit. The pc case stand kit can be purchased through the Configurator or separately in the Accessories section.

To be installed, the kit needs the PC Case Stand Kit

18) Keyboard Tray Kit - Black

The SRC keyboard kit is a solid and stable keyboard support that can be mounted on the rig. Composed by 1 45x45mm Black or Silver profile, 1 joint with lever clamping, 1 steel plate of 3 mm of thickness laser cutted and powder coated in matt black color. Fixing elements included. It can be mounted either on the right side or on the left side and thanks to the joint element it is easily adjustable to find the ideal position.

19) Adjustable Feet Kit

Kit composed by 4 adjustable steel feets and related fixing elements. The adjustable feets allow to perfectly level the rig and offer maximum stability.

This kit is compatible with all the Sim Race Components rigs.

20) Cable Management Kit

21) VR/Headset Hook

The SRC VR/headset kit is a useful accessory to support the VR visor or headset. It can be fixed on the rig in any position using both horizontal or vertical profiles.

22) Universal/Thrustmaster Combo Kit - Black

The SRC universal/Thrustmaster combo kit allows to combine the assembly on the rig of 2 devices: on the left side there is a universal support while on the right side there is a plate compatible with Thrustmaster TH8 or TSS devices. It is composed by 2 90x45mm Black or Silver profiles and 1 steel plate of 3 mm of thickness laser cutted, bent and matt black powder coated.

23) Wireless Keyboard c/w Trackpad Mouse

24) Extension Lead

25) Powered USB Hub

26) Wireless Gaming Headphones

27) 22in. PC Monitor
