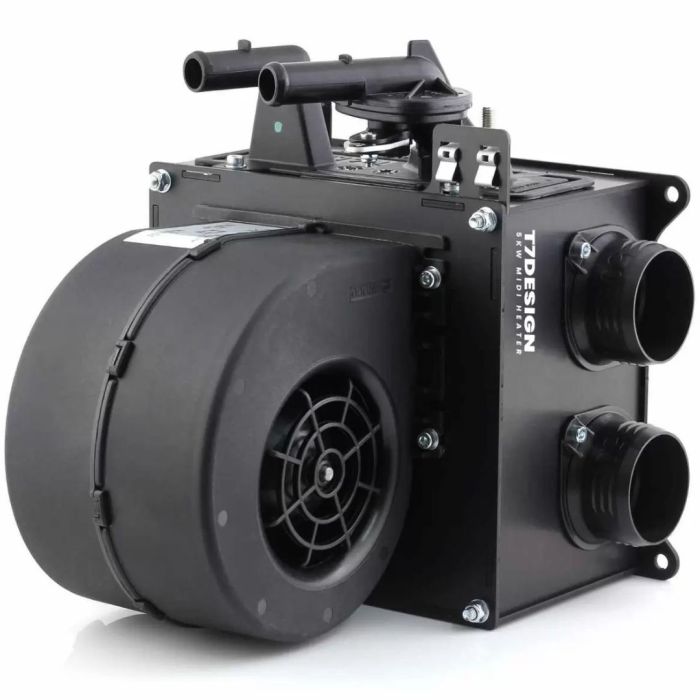

Name: Midi Heater 12v 5kw - 4 x 51mm Hose Side Oulets - 235cfm fan cw Water Valve
Brand: Murray Motorsport
Price: 254.45 USD
Availability: InStock

The 5kw Midi Heater is a mid-sized offering, this size of heater is perfectly suited to medium sized vehicles, commercial & agricultural vehicle cabins and marine applications. The heater comes complete with a 3 speed centrifugal blower and a built in ON/OFF water valve.

All of the Midi Heater components are manufactured within the UK & Europe with the high quality components which ensure longevity and safe operation. Typical weight savings over a production vehicle heating system can be in excess of 6kg.

Specification	Metric	Imperial & Other
Heat Output	5 kw	17,060 BTU
Airflow	399 m3/hr / 297 m3/hr	235 cfm / 175 cfm
Weight	2.8 kg	6.16 lbs
Hose Size	∅ 16mm	∅ 5/8"
Air Nozzle Size	4x ∅ 51mm	4x ∅ 2"
Noise Level	62 dB (Max Fan Speed)	-
Voltage	12v
Current Continuous	10.5a
Fan Speeds	3 Speed with Onboard Resistor Pack
Water Valve	Yes - Push to Close
Enclosure Construction	Aluminium Enclosure with Black Anodised Finish
Heater Core Design	Aluminium Tube & Fin
Manufacturer	T7Design Ltd
Part Number with Valve	997-7AD-ED9
Part Number without Valve	0F6-1B4-8EB

Wiring Information

The heater has an integrated resistor pack offering 3 speed control; OFF 1 2 & 3. No switch is supplied with the kit, please view our range of multi position switches in our store.

Wire Colour	Use
Red Wire	High Speed
Orange Wire	Medium Speed
Yellow Wire	Low Speed
Black Wire	Earth

Please ensure your supply is fused appropriately, it is recommended to use a 12 to 15a fuse and that your cable is rated higher than the fuse.

Dimensions

5kw Midi Heater Side Vents Dimensions
