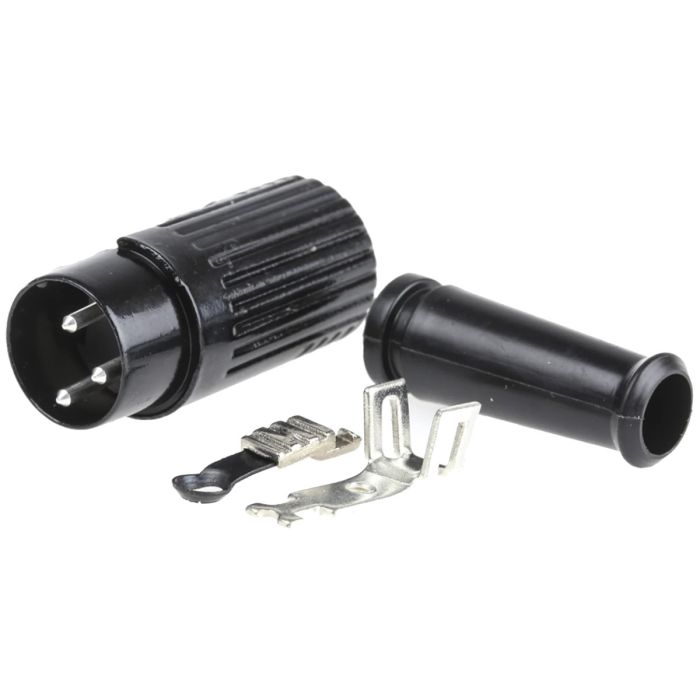

Name: 3 Pin DIN Male Plug - Push Lock
Brand: Murray Motorsport
Price: 11.39 USD
Availability: InStock

Latching DIN Connectors

Our latching DIN connectors are similar to the screened type but incorporate a ’depress to release’ mechanism which prevents accidental disengagement. This range of cable mounted latching DIN connectors only latch with their counterpart in the range. These DIN connectors will, however, mate without latching with other connectors of the same pin configuration and made to DIN standards.

Typical Applications:

DIN connectors have multiple pins within a protective circular sheath and cables that plug into an interface to connect devices. Similar to other kinds of electrical connectors, their function is to enable a secure signal and current transmission by pairing a male half (the pins) to a female receptacle (the housing).
A DIN connector is a type of electrical connector and can be used in various applications to connect devices including, personal computers, audio and video to power, serial and data.

Attribute	Value
Number of Contacts	3
Gender	Male
Mounting Type	Cable Mount
Connector Size	Standard
Mating Type	Push Lock
Body Orientation	Straight
Current Rating	1A
Voltage Rating	100 V ac
Shielded/Unshielded	Shielded
Series	YE-118XMB
Housing Material	ABS
Contact Material	Brass
Contact Plating	Silver

Brand

Murray Motorsport

Weight

0.100000
