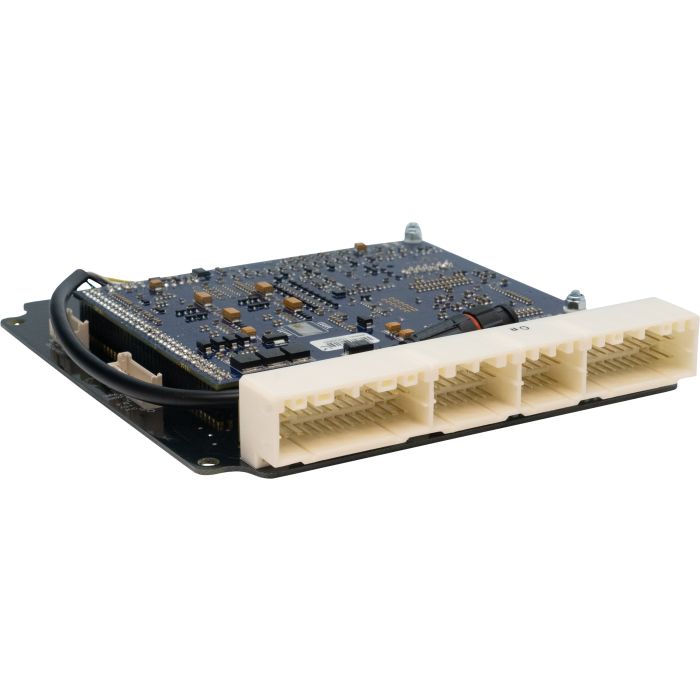

Mazda RX7 Series 6 Plug-In ECU

titleblue
SKU:
OUT OF STOCK - Estimated Dispatch 4-12 Working Days
arrow-down Customise and Add to Cart
Trustpilot
Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

This ECU is designed for the RX7 series 6 13BT.

  • Please check your pinout connector matches the header in the listed photo before purchasing.
  • This ECU works for manual transmissions only.
  • Check the features tab for I/O expansion options.
  • This ECU will need a modification before E-Throttle is usable.

Suitable applications:
FD3S Series 6 RX7
This ECU will support naturally aspirated, parallel twin or single turbo configurations. Does not support sequential control of the stock twin turbos.

G4X PlugIn Key Features (where applicable):
• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features - antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune - automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 megabytes data logging memory
• Staged injection
• Knock with "windowing"


I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
Gnd                Sensor Ground Only
+5V Out        Supply for MAP sensor
An Volt 5        Analog 0-5V input
An Volt 6        Analog 0-5V input
DI 6                Digital Input

Download Manual
Click here to download the user manual.

Click here to download the full Specifications PDF.

Brand Link Engine Management
Weight 2.000000
