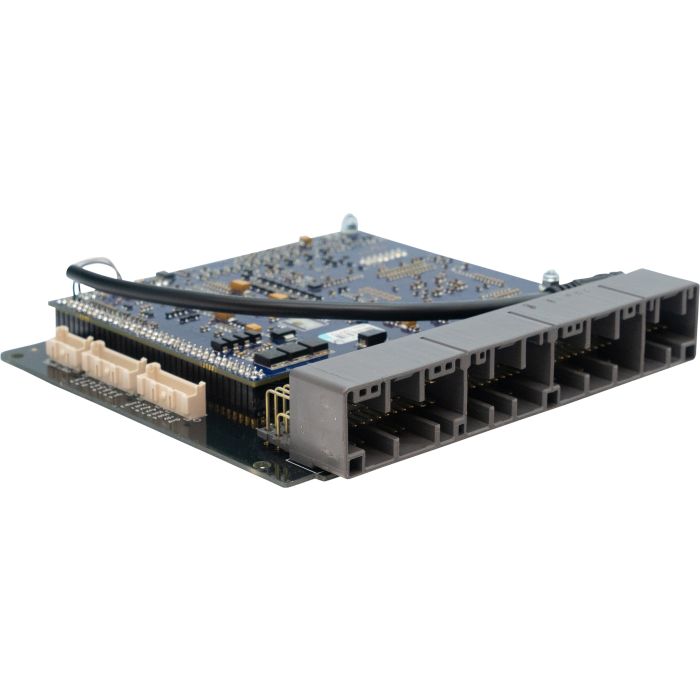

Honda Civic - 1996-98 Gen 6 Plug-In ECU

Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation of the processing unit is a breeze, with no alteration of the factory wiring loom required for the models listed below.


Designed for the 1996-1998 Honda B16 and B18 engine. All models that use the Honda “OBD2A” ECU.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• Onboard MAP sensor not included
• Most factory features are supported.
• Check the features tab for I/O input & output expansion options.
• This ECU will need a modification before E-Throttle is usable.

Suitable applications for 206-4000 Automotive Computer unit:

ACURA: 98-99 CL & 00-01

Integra LS/GS/GS-R/Type-R

HONDA: 98-02 Accord DX/LX/EX

99-00 Civic DX/LX/EX/Si

Features

G4X PlugIn Key Features (where applicable):

• Up to 6D fuel and ignition mapping

• Precision closed loop cam control (four cam, independent control)

• Sequential fuel delivery

• Digital triggering, all OEM patterns

• OEM idle hardware supported

• 5D boost control with three switchable tables

• Motorsport features - antilag, launch, flat shift

• Continuous barometric correction (on board)

• CAN port

• QuickTune - automated fuel tuning

• Individual cylinder correction

• USB tuning cable included

• Stats recording into on-board memory

• Gear compensations for spark, boost and fuel

• Real time selectable dual fuel, ignition and boost maps

• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical

• Boost control referenced to gear, speed or throttle position

• 512 megabytes data logging memory within data processing unit

• Staged injection

• Knock with "windowing"

The following expansion connector inputs/outputs are provided:

Expansion Connector 1
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
Volt 5                Analog 0-5V input
Volt 6                Analog 0-5V input
Aux 7                Auxiliary Output
Aux 8                Auxiliary Output
Volt 7                Analog 0-5V input
Temp 3                Temperature sensor input

Expansion Connector 2
Ign 5                Ignition 5 Auxiliary Output
Ign 6                Ignition 6 Auxiliary Output
Ign 7                Ignition 7 Auxiliary Output
Ign 8                Ignition 8 Auxiliary Output
DI 9                Digital Input
DI 10                Digital Input
Volt 8                Analog 0-5V input
Volt 9                Analog 0-5V input
