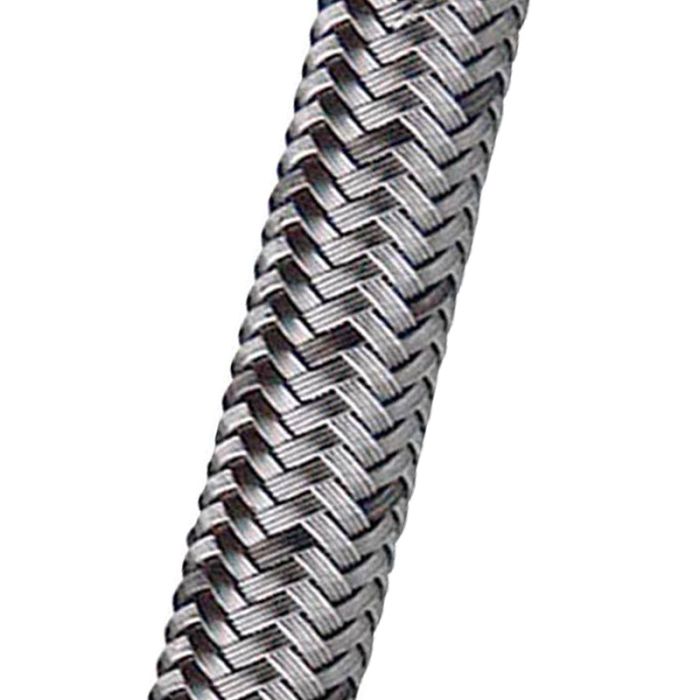

Type 411 Teflon Smooth Bore Hose - -03 (3.2mm) No Cover (standard)

Type 411 Teflon Smooth Bore Hose. The exceptional resistance of Teflon to high temperatures, permeability, chemical attack, water absorption and its low friction properties make it an ideal choice for most motorsport applications. Other benefits include high working pressures and an extremely wide range of end fitting configurations. JLS Brake Hose 411-03 has a Teflon core, with an improved closely controlled braid specification that provides a greatly increased resistance to volumetric expansion, resulting in a positive and responsive brake and clutch pedal. For larger size hose on fuel and lubrication applications JLS T62 Teflon hose also has many advantages. Because of its smooth bore, this series provides an uninterrupted passage for fuels and oils, thus eliminating the starvation and cavitational problems sometimes associated with convoluted hoses when high flow rates are used. The stainless steel outer braid offers excellent resistance to heat, abrasion and mechanical damage and will not absorb oil and fuel into its braiding, thus eliminating weight gain.

Construction:
• Inner Core: Extruded smooth bore PTFE Resin.
• Reinforcement: One layer of 304 wire braid.
• Temperature Rating: -55C to +232C (-67F to +45F).
• Couplings: Re-useable or permanently attached.
• Applications: Brake, Clutch, Instrumentation,Fuel & Lubrication.
• PC: Clear extruded outer cover to preventdamage to the stainless steel braid.
• C: Carbon Lined to prevent static build-up.
• Colours: BE-Blue, RD-Red, PC-Clear, HB-Black.
