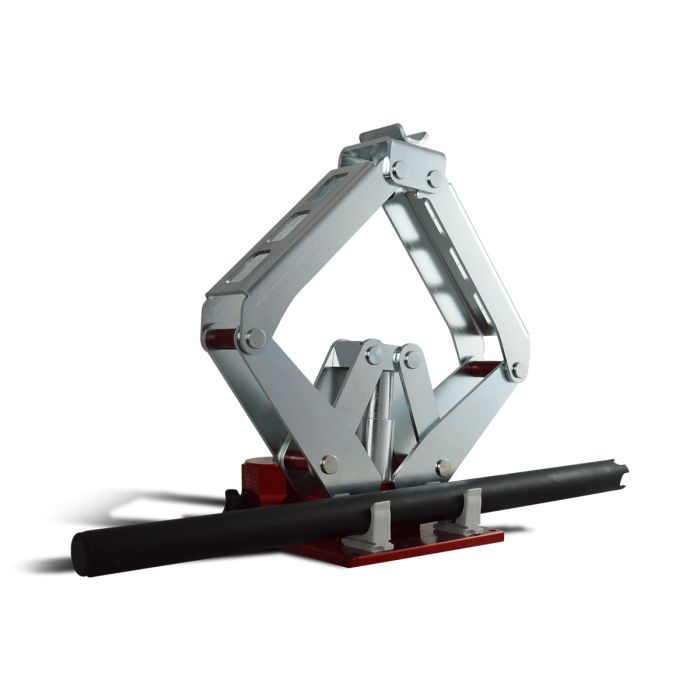

EVOjack Quadra is a fast hydraulic scissor jack specifically designed for rallying.
Jack Quadra can be used with almost any car, thanks to the d shape design which sit below the cars sill, there is no need for the insertion holes in the side of the sill. The removable handle allows to quickly lift the car and to safely turn the release valve; the lifting arm is inclined vertically in order to follow the natural movement of the car in the lifting phase, ensuring extreme stability during wheel changes. It is easy to place in the car boot, thanks to its low weight – only 5 kg – and small size.
Made from aircraft billet aluminum and high-strength steel, it undergoes surface treatments that increase abrasion and corrosion resistance, making it an investment that will last over time.
jack Quadra is a tool intended solely for competitions use.
Specs:
| Weight (kg) | 5.1 |
| Lifting speed | 24 strokes for maximum height |
| Maximum load (kg) | 600 |
| Minimum height (cm) | 16 |
| Maximum height (cm) | 39.5 |
| Extension (cm) | 23.5 |
| Total length when closed (cm) | 39 |
| Brand | EVO Corse |
|---|---|
| Weight | 7.000000 |
