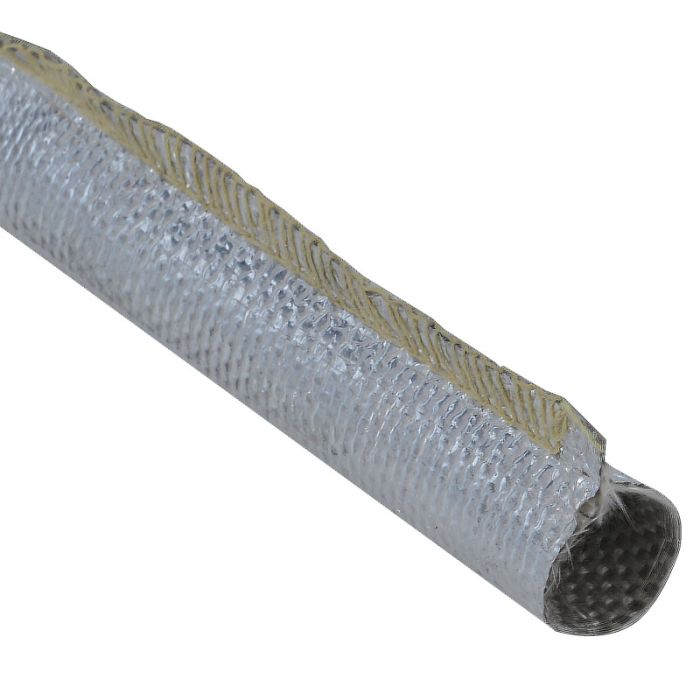

Available in Ø15mm (0.6”), Ø30mm (1.18”), Ø50mm (1.97”) or Ø110mm (4.33”) internal diameter sleeves, the B-G Aluminium and Fibreglass Heat Shield Sleeve can be used for protecting fuel lines, oil lines, wiring looms, and more.

The aluminium reflective outer cover and fibreglass inner lining construction is sewn together with Kevlar® stitching for maximum durability, meaning this Heat Shield Sleeve can withstand 590°C (1100°F) of continuous radiant heat and 260°C (500°F) of direct heat.

The B-G Aluminium and Fibreglass Heat Shield Sleeve is available in 1m (3.2ft) lengths and it can easily be cut to length using a pair of scissors, and simply slid over the fuel line, oil hose or wiring loom to provide heat protection.

Specifications

Part Number	BG5322: 1m x 15mm ID (3.2ft x 0.6”)	BG5323: 1m x 30mm ID (3.2ft x 1.18”)	BG5324: 1m x 50mm ID (3.2ft x 1.97”)	BG5325: 1m x 110mm ID (3.2ft x 4.33”)
Brand	B-G
Diameter	BG5322: 15mm ID (0.6”)	BG5323: 30mm ID (1.18”)	BG5324: 50mm ID (1.97”)	BG5325: 110mm ID (4.33”)
Material	Aluminium and Fibreglass
Colour	Silver
Finish	Reflective
Length	1m - 3.2ft
Operating Temperature Range	Radiant: 590°C (1100°F) / Direct Contact: 260°C (500°F)
Construction	Sewn
Nett Weight	BG5322: 10g – 0.02lb	BG5323: 10g – 0.02lb	BG5324: 150g – 0.33lb	BG5325: 250g – 0.55lb

Warranty

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission. This guarantee does not affect your statutory rights.
