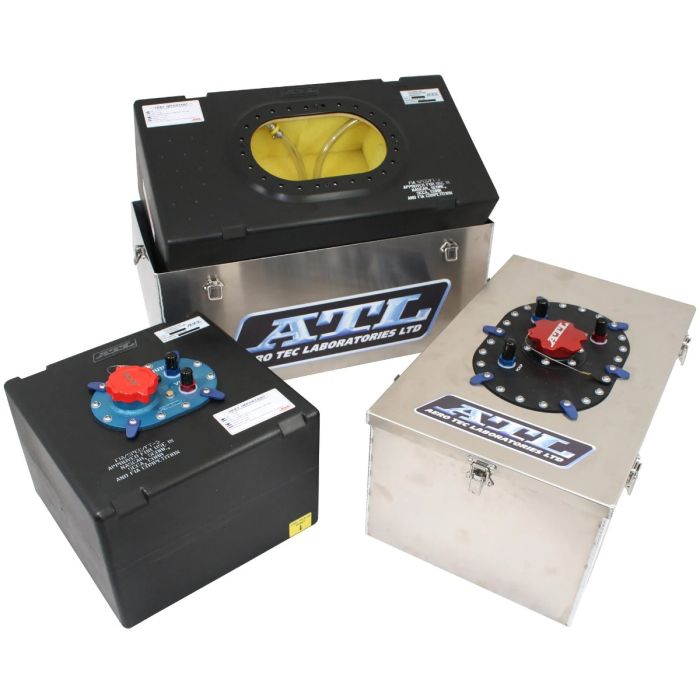

The ATL Saver fuel cell range is made from a special strong plastic mix (FIA Homologation No ATL-565). Each one comes with foam inside to prevent fuel splashing and explosions. All ATL Saver Cells are approved by FIA FT3-1999 and come with the right FIA label.
Most saver cells have a 6” x 10” top plate, except for the 20 Litre 4" x 6" version. The top plate has:
- 2 fuel pickups
- 1 rollover vent valve
- 2 1/4” Diameter non-return filler neck (can be changed for quick filling)
- ATL Viton non-return valve
- Marked for VDO fuel level sender (sender not included)
The 20 Litre version has a 4” x 6” top plate with:
- 1 fuel pickup and filter
- 1 rollover vent
- 1 2 1/4” Diameter filler neck with safety valve and cap.
ATL saver cells work with carburetor fuel systems. For fuel injection, an extra catch tank/swirlpot is needed.
The table below shows the fuel cell dimensions and also the external dimensions of the associated alloy container (sold separately). Please note that fuel cells can swell 2-4% when subjected to fuel.
ATL SAVER CELL SIZE GUIDE
| CELL CAPACITY | CELL SIZE (L X W X H) | ALLOY CONTAINER SIZE (L X W X H) |
|---|---|---|
| 20L | 330 X 330 X 230MM | 350 X 350 X 240MM |
| 30L | 505 X 305 X 224MM | 534 X 326 X 240MM |
| 40L | 602 X 312 X 254MM | 638 X 337 X 270MM |
| 45L | 502 X 437 X 234MM | 531 X 464 X 250MM |
| 60L | 602 X 437 X 234MM | 633 X 461 X 250MM |
| 80L (A) | 640 X 640 X 210MM | 673 X 673 X 225MM |
| 80L (B) | 620 X 415 X 338MM | 658 X 440 X 355MM |
| 80L (C) | 843 X 435 X 235MM | 881 X 459 X 250MM |
| 100L (A) | 740 X 425 X 350MM | 777 X 461 X 375MM |
| 100L (C) | 635 X 430 X 430MM | 661 X 443 X 445MM |
| 120L (A) | 640 X 640 X 338MM | 671 X 671 X 340MM |
| 120L (B) | 641 X 465 X 420MM | 671 X 496 X 445MM |
| 120L (C) | 845 X 437 X 361MM | 888 X 462 X 377MM |
| 120L (D) | 630 X 416 X 535MM | 646 X 441 X 560MM |
| 170L | 640 X 640 X 425MM | 671 X 671 X 445MM |
| Colour | No |
|---|---|
| Brand | ATL |
