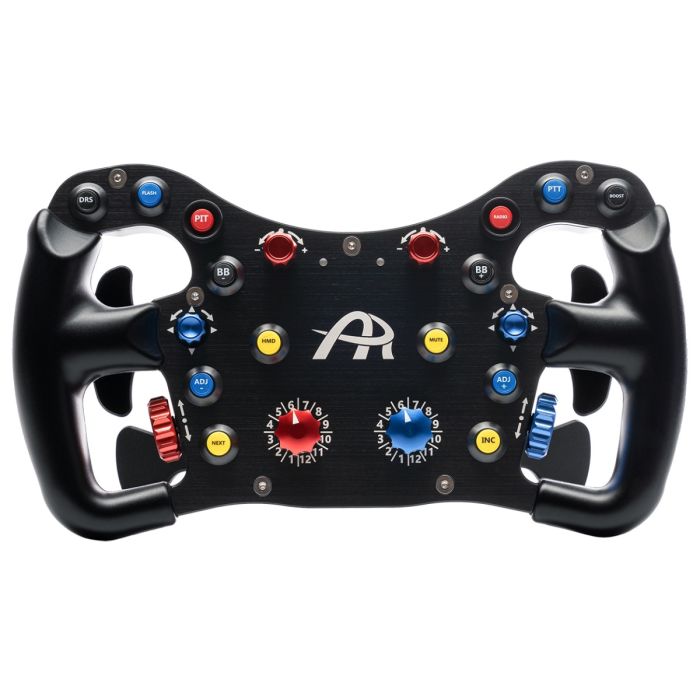

Ascher Racing F64 V3 Formula Steering Wheel - Wired

US$1,073.76
Add to
Wish List
SKU:
76080025
Available - Immediate dispatch
main product photo


ASCHER-RACING F64-USB V3

IT FITS EVEN BETTER IN YOUR HANDS

The semi-steering wheel collar of the Ascher Racing F64 V3 is shaped ergonomically and features a grippy and non-slip rubber surface. Once again, we took the current steering wheels design used in motorsports as a reference. So even if you drive without wearing gloves, the F64 V3 offers a good grip, even with sweaty hands.

GET EVERYTHING UNDER CONTROL: 64 INPUTS

We have further technically revised input options for the F64 V3. The two 7-way joysticks, the two magnetic shift paddles and the contactless clutch paddles work even more precise. In the F64 V3, we have now integrated radially mounted thumb encoders on the side, which provide excellent feedback with every move.

APPROVED IN MOTORSPORT: OUR CLUTCH PADDLES AND SHIFTERS

Our clutch paddles and magnetic shifters are machined from a high-strength aircraft aluminum alloy. In addition to SimRacers, motorsport teams use our robust Ascher Racing Clutch Paddles and Shifters. The resistance of the paddles can be adjusted using the supplied magnets. With the clutches, you can use the precise bite-point calibration to individually adjust the pressure point for perfect acceleration.

  • Platform independent USB connection
  • 285mm diameter
  • Maximum grip level from closed, ergonomic rubber grips
  • 14 x push buttons with tactile feeling
  • 2 x multifunctional 7-way joysticks
  • 2 x encoders (inc. push button functionality)
  • 2 x 12-position rotary switches
  • 2 x thumb encoders
  • Magnetic paddle shifters
  • Contactless motorsport clutch paddles
7 WAY JOYSTICK

Both joysticks are perfect for navigating through menus or function displays in your simulation. They also have a pressure point and you can program them for adjusting the brake balance.

14X PUSH BUTTONS

The push buttons have a tactile function that always gives you tangible feedback, with every press.

PROTECTIVE BUTTONGUARDS

To protect against operating errors, some of the buttons are equipped with button guards. This prevents you from accidentally switching to the menu or cancelling your record lap.

THUMB ENCODER

The two new side-mounted thumb encoders can be comfortably accessed with your thumbs for intuitive usage even at your fastest pace.

STICKER

Your Ascher Racing F64 V3 comes with a comprehensive range of mounting accessories, but we have also included various labelling stickers.

TECHNICAL DATA

64 INPUTS
12 x push buttons with positive tactile feeling
2 x protective button guards
2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
4 x encoders inc. push button functionality, aluminium knob
2 x 12-position rotary switches, aluminium knob
2 x paddle shifters
2 x clutch paddles with electronic bite-point calibration

HIGH QUALITY FINISH
Maximum grip level from closed, ergonomic rubber grips
Machined out of automitive aluminium
Black anodized and laser engraved
Brushed frontplate surface finish
Glass bed blasted paddle surface finish

CONTACTLESS CLUTCH PADDLES
CNC machined and anodized out of automotive aluminium
Contactless hall sensor
Smooth operation for maximum control

MAGNETIC PADDLE SHIFTERS
CNC machined and anodized out of automotive aluminium
Strong snap-action force
Alternative magnets to reduce force included
Reliable automotive switch

BUTTON LABELS
50 pcs button labels each black and white
72 pcs encoder labels (blue, green, red, black, yellow, white)
Labels for various common steering wheel inputs

ELECTRONIC BITE-POINT CALIBRATION
- Precise adjustments in 1.0 % and 0.1 % increments
1. push both joystick buttons for 1s to acces bite-point mode
2. LED lights up to indicate calibration mode
3. rotate left joystick for 1.0 % increments / right joystick for 0.1 % increments (LED flashes to indicate changes)
4. exit calibration mode by pushing both joysticks again for 1s

- Recommended procedure for finding best setting:
1. enter calibration mode and set bite-point to high value, e.g. 80 %
2. pull slave clutch only
3. apply throttle
4. reduce bite-point in 1.0 % increments (left joystick) until vehicle starts moving
5. make test starts to fine tune desired bite-point setting
6. exit bite-point calibration mode

- Recommended procedure for quick race starts
1. pull both master and slave clutche
2. apply throttle
3. race start -> let master clutch snap
4. it will take less than 20 ms to reach desired bite-point
5. slowly release slave clutch

GENERAL INFORMATION
285 mm wheel diameter
6 x 70 mm bolt pattern
Robust, shielded coiled cable with industrial Binder M16 connector
Coiled cable connector length approx. 64mm
Spacer may be required to create sufficient clearance to the wheel base
M5 x 12 mm stainless screws to mount QR included
Quick Release not included
Mass: 1140 g

COMPATIBLE WHEELBASES
Simucube 2
Simucube 1 (OSW, Mige)
Accuforce *
Leo Bodnar**
OSW (Argon)
Simagic
VRS Direct Force
Fanatec Podium Hub*
* captive screws are required
** Wheelbase comes without QR
*** longer screws are required

NEW FEATURES
Compared to its previous model, the F64-USB V2 features new 12-position switches which provide improved feedback, a closed shape and motorsport rubber grips.
Improved grip ergonomics including slightly larger diameter, thinner lower section, different top shape to push top button.
Rubber grips:
- Are not showing any tear
- Offers much more grip
- Perfect hardness (not too soft, not too hard) for much easier endurance racing without getting exhausted
- Can be used without using gloves (also with sweaty hands)
- Better hygienics
- New 12-position rotary knob
- Better usability in “encoder mode” (rotational symmetry)
- Much better feedback
