YOUR DASHBOARD FOR EVERY RACE.

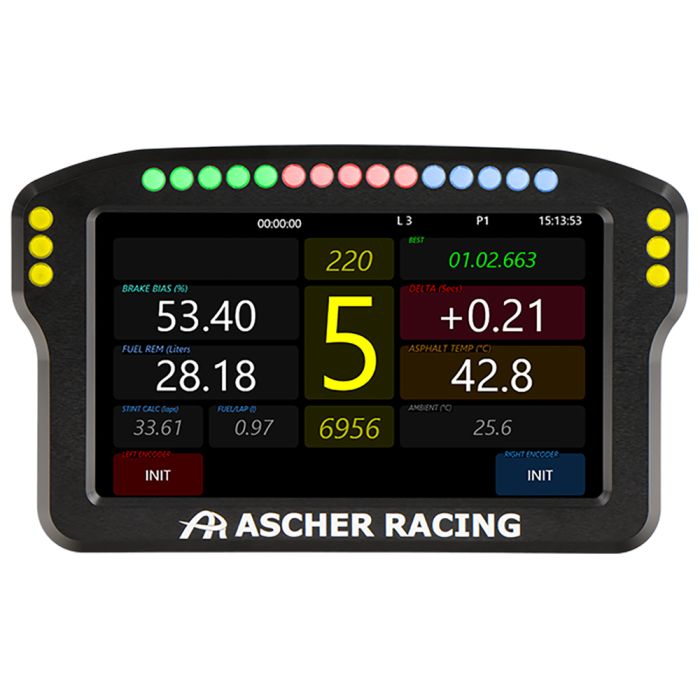

Ascher Racing Dashboard available in 4 or 5 inch displays.
Everything at a glance. Our dashboards with high-grade cases made from CNC-machined aluminium look irresistibly good. And they are also state-of-the-art. Thanks to the compatibility with SimHub, you can configure your dashboard individually for each race and for each simulation.
COMPACT DESIGN. POWERFUL DISPLAY.
As the community of Ascher Racing is quite accustomed to, we have also invested a lot in engineering for our 4" and 5" dashboards. For example, the housing is made of aluminium. The LEDs are separated, and the 16-bit colour display with a resistive touchscreen is easy to read with 350 lumens. Of course, you can operate the touchscreen with your racing gloves. All data is displayed in real-time on the touchscreen with a resolution of 800 x 480 pixels or 854 x 480 pixels. So, you have all the information about your race and race car at a glance!
FREE PROGRAMMABLE AND HIGH LUMINOSITY DISPLAY
The 21 coloured LEDs in the Ascher Racing Dashboards are each located in individual borings, which means that no light interference can occur. Thanks to the compatibility with SimHub, you can control and configure each LED individually. So you have all freedom to configure the LEDs for flag signals, fuel gauge, changing gears, or anything else on your dashboard LEDs. Each LED can display up to 16 million colours.
REAL ASCHER RACING
We at Ascher Racing never do things halfway and took our high-quality button plates and steering wheels as a pattern for our dashboards. Thus, the design of our dashboards fits harmoniously with our steering wheels. Due to the compatibility with SimHub, our dashboards are completely free programmable in their function. It's up to you which telemetry data you want to display on the dashboard. Or you can use the countless dashboard presets from the community if you don't feel like creating your display with the dash editor.
ANODIZED ALUMINUM FOR BEST QUALITY
Our case does not come from a 3D printer, but we mill from aluminium. The anodized aluminium case is extreme compact and the entire display is only 18 millimetres strong. Whether you choose the 4" or the 5" dashboard, you can place both well in front of your screen. Power and data are supplied at the back via an included angled USB-C cable. We have also put the power button there.
COMPATIBLE WITH THE MOST COMMON WHEELBASES
Simucube 1 / 2
Fanatec Wheelbases
VRS Direct Force Pro
Mige & Lenze Motoren
Simagic
LEDS - A total of 21 LEDs display up to 16 million colors. So that you have everything in view, we have arranged 15 diodes horizontally and three diodes vertically on each side of the display. So that the LEDs do not overlap in their colors, each diode sits in its own drilling.
USB-C - Power is supplied via a USB-C port. The included cable is of course angled.
ON-OFF SWITCH - Both dashboards have an on/off switch on the back.
SIMHUB INTEGRATION - For our Ascher Racing Dashboards, you can find numerous presets on SimHub or simply configure your own LED profiles or dashboard designs if you want something unique for yourself.
MOUNTING BRACKETS - Included are the matching carbon mounting brackets to mount the dashboard to various wheelbases such as SimuCube, Fanatec and Co.
TECHNICAL DATA
DISPLAY PERFORMANCE DATA:
4'' Dashboard Display size: 86 x 53 mm
4'' Dashboard Resolution: 480 x 800 px
5'' Dashboard Display size 109.6 x 61.6 mm
5'' Dashboard Resolution 480 x 854 px
Touch operation, e.g. changing the dash pages
16bit colours
350lm brightness
SOFTWARE INTEGRATION:
official SimHub integration
countless dash designs and LED profiles available
incl. Ascher Racing dash design and LED profile
- direct integration of the Ascher Racing steering wheels
- e.g. clutch pop-ups from F64 USB/ SC
- iRacing: vehicle specific LED profiles incl. telemetry optimized & gear dependent shift timings
unlimited setup possibilities (telemetry values, formulas, etc.)
user-friendly dash editor
21 PCS. RGB LEDS:
15 pcs. arranged horizontally and 2 x 3 pcs. arranged vertically
16 million possible colours
extremely bright, e.g. for switching flash and flag signals
unrestricted viewing area
no light coupling from adjacent LEDs
HIGH PROCESSING QUALITY:
CNC machined and anodized from automotive aluminium
only 18mm thick & angled USB-C cable
only 1 connection cable needed
ON-OFF switch on the back
COMPATIBILITY:
Simucube 1 / 2
Fanatec Wheelbases
VRS Direct Force Pro
Mige & Lenze motors
Simagic
INCLUDED IN THE BOX:
Carbon mount
Required screws for mounting
Spacers made of aluminium for individual adjustment of the distances
Dashboard 4" or 5"
| Brand | Ascher Racing |
|---|
