GENERAL SPECIFICATIONS

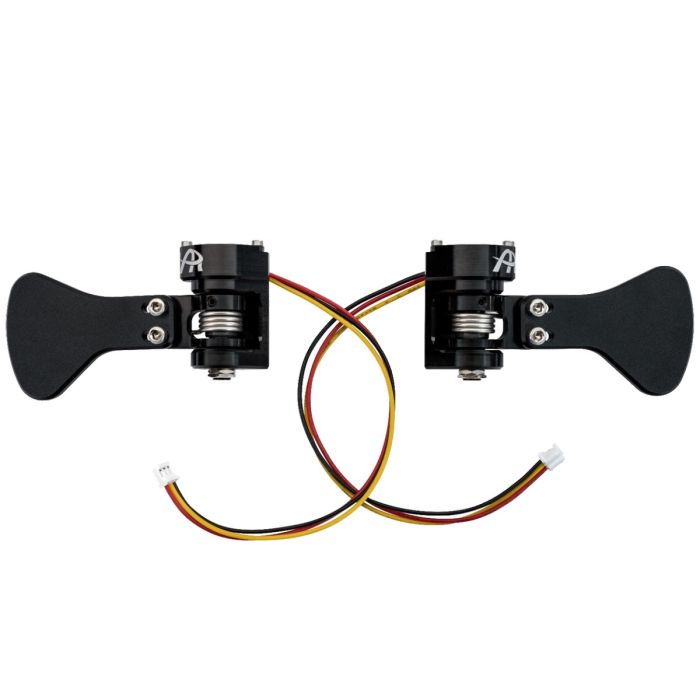

- weight approx. 48g per clutch
- no moving electronic parts for unlimited operation
- wide temperature range: -40°C to 125°C
- IP67 waterproof
ELECTRICAL SPECIFICATIONS
- 3.3V (factory default) or 5.0V DC supply voltage
- 5.0V mode: remove jumper!
- output signal: analog voltage, ratiometric to VDD
- output range: approx. 6% to 94% VDD
- 12-bit resolution (4096 steps/ <0.01mm paddle movement)
- noiseless output due to on-sensor filtering and hysteresis
- extremely low power consumtion, ideal for wireless devices (approx. 1mA)
Mouting and Additional information in "Product Downloads" Tab
| Brand | Ascher Racing |
|---|---|
| Colour | No |
| Weight | 0.500000 |
