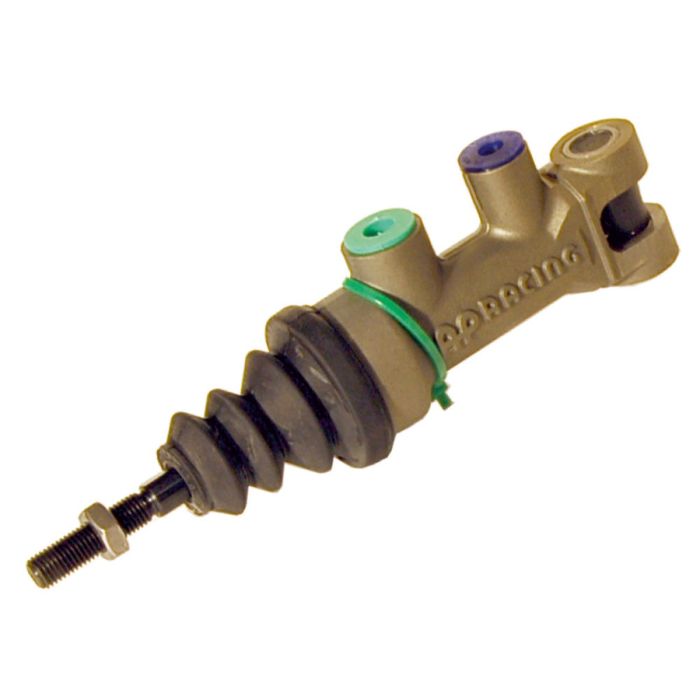

CP7854 Trunnion Mount Master Cylinder

titleblue
SKU:

Options

Select Option To View Availability
arrow-down Customise and Add to Cart
Trustpilot

The CP7854 master cylinders from AP Racing are designed for a short push action and mount directly to the balance bar using a trunnion system. The trunnion runs on needle roller bearings for smooth operation. A one-piece piston and pushrod design makes these cylinders more efficient than traditional types.

  • Trunnion mount with roller bearings for smoother operation.
  • Extra short travel to cut off: 0.48mm-0.63mm (0.019"-0.025").
  • One-piece piston and pushrod for better efficiency.
  • Hard anodized aluminum body for corrosion resistance.

Dimensions:

  • Full stroke (14mm to 7/8" bore): 30mm (1.18").
  • Full stroke (15/16" to 1" bore): 28mm (1.10").
  • Travel to cut off: 0.48mm-0.63mm (0.019"-0.025").
  • Inlet thread: 7/16" UNF.
  • Outlet thread: 3/8" UNF.
  • Pushrod thread: 5/16" UNF.

These master cylinders are suitable for use with AP Racing CP5509-1 floor mount pedal box and CP5520-3, CP5520-4, CP5520-25LC balance bars.

Brand AP Racing
