AP Racing

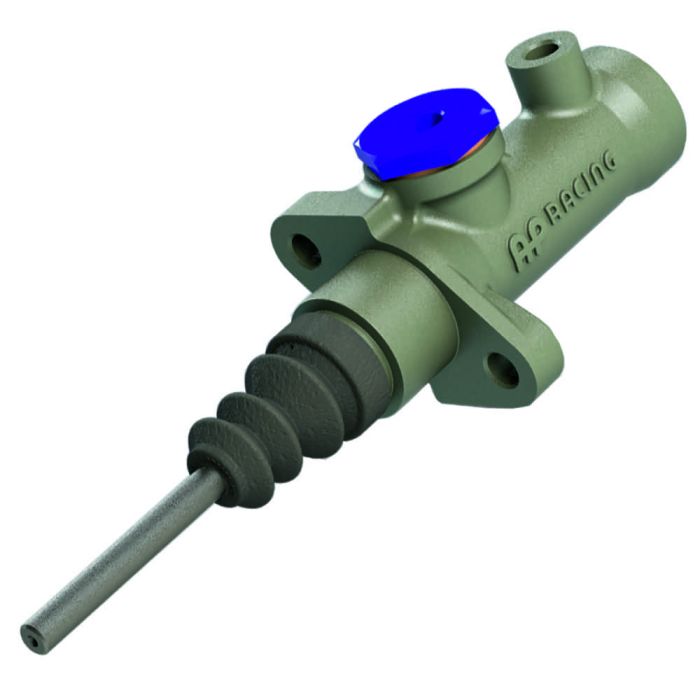

CP7398 - Push Type Master Cylinder

Name: CP7398 - Push Type Master Cylinder
Brand: AP Racing
Price: 442.81 USD
Availability: InStock

SKU:

Quantity

Select Option To View Availability

General Information:

- Push type design, similar to CP7198 type but with a 60° mounting flange offset.

- Centre Valve configuration, helps to improve cylinder performance and seal durability.

- For use with ABS and high pressure applications.
- Forged Aluminium Alloy body.

- Suitable for most brake and particularly clutch applications.

- Metric hydraulic threads.

- Short travel to cut-off standard.
- Choice of 3 bore sizes.
- Rubber boots fitted as standard

Parameter	Specification
Weight	0.37Kg (0.81lbs)
Full Stroke	30.0mm (1.18")
Travel to Cut-off	0.68 to 1.09mm (0.27" to 0.43")
Inlet Hydraulic Threads	7/16" x 20UNF
Outlet Hydraulic Threads	3/8" x 24UNF
Push Rod Threads Available	PRT = 5/16"UNF
Push Rod Length from Mounting Flange	128mm (5.03")

Brand	AP Racing
