AP Racing

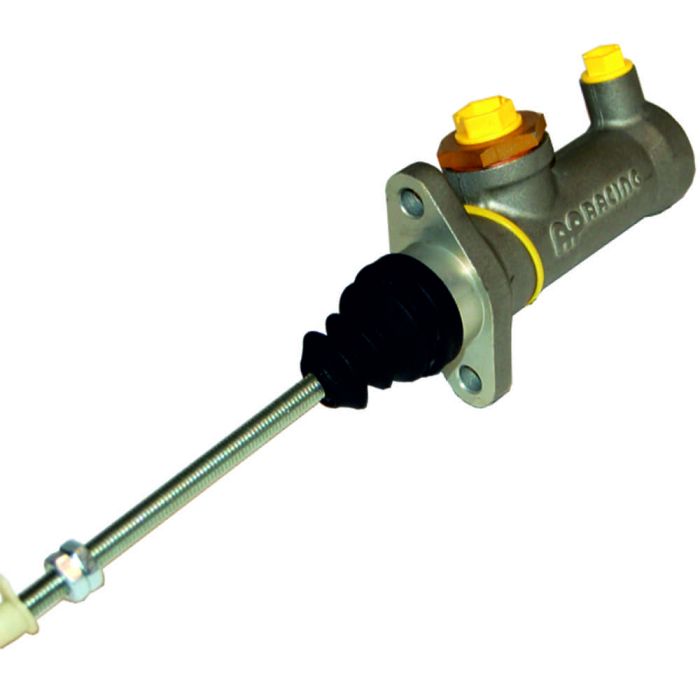

CP7198 - Push Type Mater Cylinder

Name: CP7198 - Push Type Mater Cylinder
Brand: AP Racing
Price: 403.47 USD
Availability: InStock

SKU:

Quantity

Select Option To View Availability

General Information:

Centre Valve configuration, helps to improve cylinder performance and seal durability.

- For use with ABS and high pressure applications.
- Forged Aluminium Alloy body.

- Flange mounted.

- Suitable for most brake and particularly clutch applications.

- Metric hydraulic threads.

- Short travel to cut-off standard.
- Choice of 8 bore sizes.
- Rubber boots fitted as standard.

Parameter	Specification
Weight	0.37Kg (0.81lbs)
Full Stroke	30.00mm (1.18")
Travel To Cut-Off	Short - 0.68 to 1.09mm - 0.27" to 0.43"
Inlet Hydraulic Threads	M12x1.0
Outlet Hydraulic Threads	M10x1.0
Push Rod Thread Available	- PRT - 5/16" UNF - PRM - M8x1.25
Push Rod Length from Mounting Flange	163mm (6.41")

Brand	AP Racing
