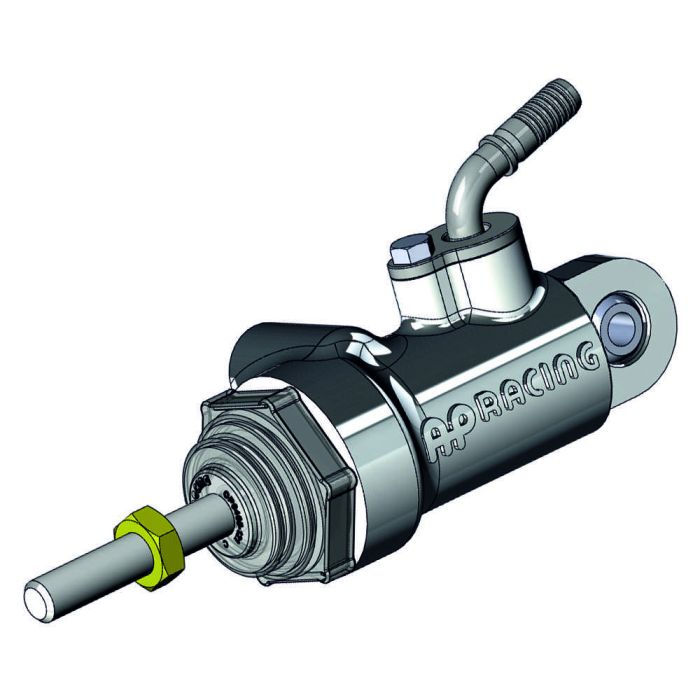

CP6468 Pull Type Master Cylinder

titleblue
SKU:

Options

Select Option To View Availability
arrow-down Customise and Add to Cart
Trustpilot

A master cylinder virtually identical to CP6465 type but mounted through a spherical bearing.

Features:

- A pull type design, more efficient than conventional type master cylinders.

- Forged Aluminium alloy body.

- Hard anodised.
- Mounted through a spherical bearing.

- Low profile inlet and outlet.

- Special "plug in" inlet connection can be swaged directly to dash 4 hose.

- Choice of 5 bore sizes.
- Extra Short travel to cut-off standard.
- Rubber boots fitted as standard.
- Used on CP5538-1 pedal box.



Parameter Specification
Weight - 0.23 to 0.27Kg
- 0.51 to 0.29lbs
Full Stroke 25.4mm (1.00")
Travel To Cut-Off - 0.48 to 0.63mm
- 0.19" to 0.25"
Inlet Hydraulic Thread Special Fitting
- 75° type= CP6465-10
- Straight type = CP6465-11
- 90° type = CP6465-12
Outlet Hydraulic Thread M10x1.0
Push Rod Thread PRME - M8x1.25
Brand AP Racing
