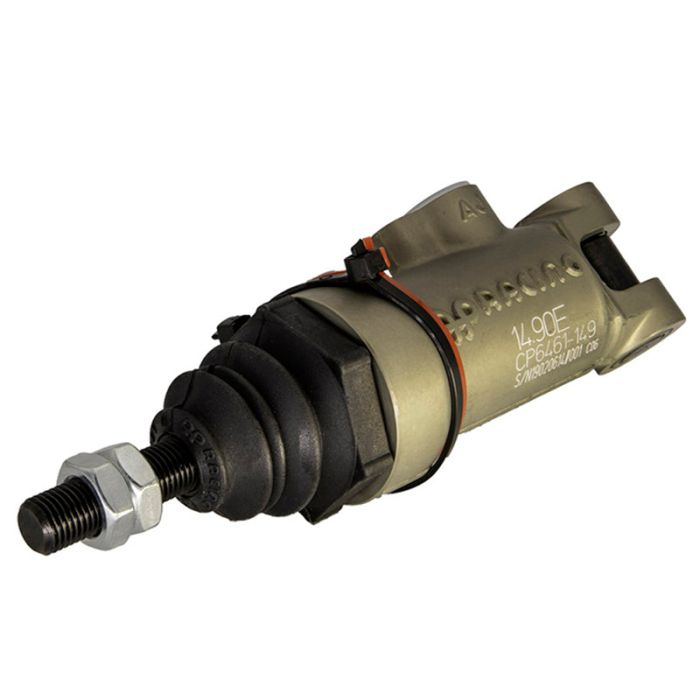

CP6461 Master Cylinder

titleblue
SKU:

Options

Select Option To View Availability
arrow-down Customise and Add to Cart
Trustpilot

CP6461 cylinder family joins AP Racing ultimate range of pull type master cylinders.This cylinder operates on the pull rather than push principle of other cylinders. It has a built in trunnion mounted in needle roller bearings for direct mounting to the balance bar. CP6461 has a key feature over other trunnion mounted pull types, with a 3/8UNF pushrod specifically designed for applications where vibrations and resonance maybe present

Features:

- A pull type design.

- Durable 3/8”UNF pushrod. Suitable for applications where vibrations and resonance maybe present.

- Aluminium Alloy Body.

- Extra short travel to cut-off.

- Low profile inlet and outlet.

- Has a built in trunnion mounted in needle roller bearing for direct mounting to the balance bar.

- Special “plug in” inlet connection can be swaged directly to dash 4 hose.

- Use with CP5520-3, -4 or -25L trunnion type balance bars.



Parameter Specification
Weight - Kg 0.23 to 0.27Kg (0.51 to 0.59lbs)
Full Stroke 25.4mm (1.00")
Outlet Hydraulic Thread M10 x 1.0
Pull Rod Thread 3/8" UNF
Special Inlet Fittings - 75° Angle Fitting Kit CP6465-10.
- Straight Fitting Kit CP6465-11.
- 90° Angle Fitting Kit CP6465-12.
Brand AP Racing
