ADS GPS Lap Timer

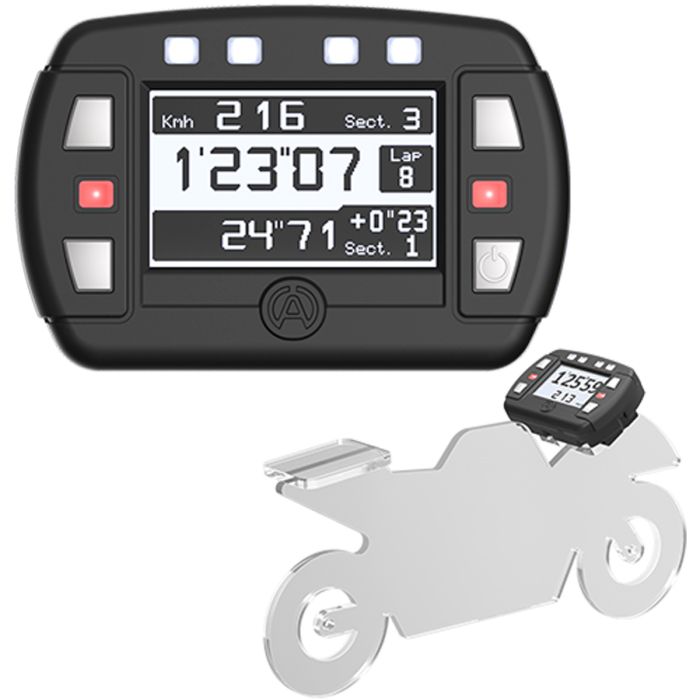

The Alfano 1001 ADS GPS Lap Timer is a compact, standalone device designed for motorsport enthusiasts seeking precise lap timing and performance analysis using advanced GPS technology. Here’s a detailed breakdown of its key features, functions, and usability:

Key Features

• Integrated GPS: Utilizes GPS positioning to automatically record lap times, split times (up to 5 per lap), and speed points (up to 5 per lap) once the track points are programmed.

• Display: Equipped with a pixel screen (54.4 × 32 mm, 160 × 94 resolution) with backlighting for clear visibility in various lighting conditions.

• LED Indicators: Six LEDs provide visual feedback—four for lap times and two for speed positions.

• Bluetooth Connectivity: Allows wireless data transfer to the Alfano Track Manager software or dedicated mobile apps for advanced analysis and overlay on Google Earth.

• Data Storage & Analysis: Stores and displays lap times, split times, and speed, with graphical analysis available via the device and downloadable software.

• Sampling Rate: Offers a sampling rate of up to 10 Hz (every 100 ms), with options to reduce frequency for endurance events to save memory.

• Multi-User Support: Can store profiles and sessions for up to three different drivers/riders, making it suitable for shared vehicles or coaching environments.

• Multiple Modes: Supports various motorsport disciplines including circuit racing, rally, slalom, and motorcycle schools.

• Splash Protection: Rated IP56 for splash resistance, suitable for outdoor use in motorsport environments.

• Power Supply: Operates on two AA LR-6 batteries, with an optional 12V connector available.

• Dimensions & Weight: Compact at 111 × 73.5 × 41.5 mm and weighs approximately 500 grams.

Functionality

• Track Creation & Management: Tracks can be created by recording GPS positions during a reconnaissance lap or imported via Bluetooth or the Track Manager software.

• Automatic Timing: Once the start/finish line and split points are set, the device automatically detects and records laps and splits as you drive or ride.

• Data Visualization: Multiple display modes allow you to view best lap, current lap, split times, speed, and distance traveled in real time or after the session.

• Data Download & Sharing: All session data can be downloaded via Bluetooth for detailed analysis, comparison, and sharing with other drivers or instructors.

Practical Use Cases

• Track Days & Racing: Ideal for car, kart, and motorcycle track days, as well as competitive racing, providing accurate lap and sector timing without external sensors.

• Driver Coaching: Multiple user profiles and data sharing make it suitable for instructors working with different drivers.

• Performance Analysis: Enables detailed review of lap consistency, sector performance, and speed points to identify areas for improvement.
