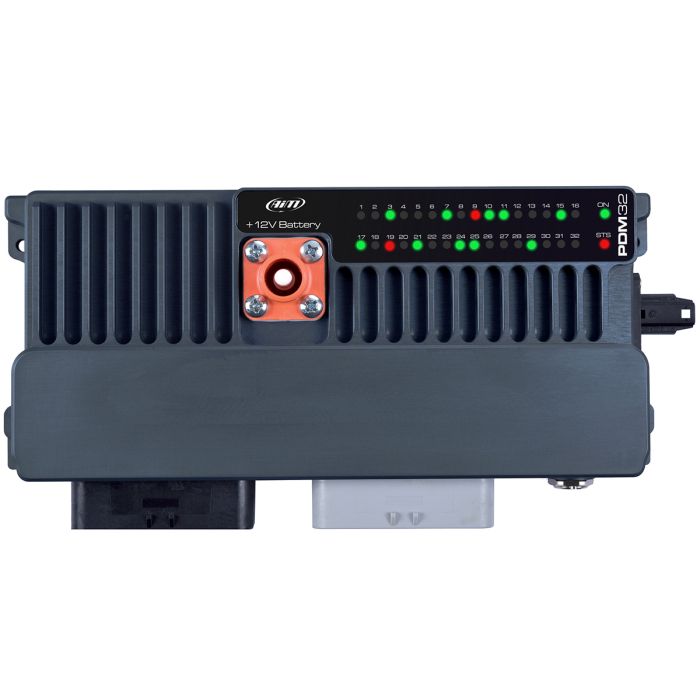

AiM PDM32 Power Distribution Module
The AiM PDM32 has been designed to distribute power to multiple circuits on your vehicle.
Key Features:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The AiM PDM32 is a 32 channel advanced power distribution module designed to power a multitude of vehicle circuits removing the need for traditional fuse boxes and relays. Connection Example
|
||||||||||||||||||||
Power OutputsThe PDM32 features 28 high sided outputs and 4 half bridge outputs.
Each of the outputs provides feedback to the data logger to provide vital information such as open circuits, short circuits, high / low voltage, the number of fault retires and the time between the reties is user definable. All outputs can be configured as PWM's for a soft start / stop. All of the PDM circuits can be set up and monitored via our Race Studio 3 Software. |
||||||||||||||||||||
Special FunctionsSome "black boxes" are available for simplifying the configuration. PDM Inputs
|
||||||||||||||||||||
Data ManagementThe PDM32 is capable of receiving and recording data from the following sources: ECU - Over 1000 protocols available / Digital / Analogue Inputs / Internal 9 axis EMU / GPS - Lap time and position / Expansions / Push buttons - From R1O02 module or any commercial CAN keypad / PDM outputs - Currents and status of each channel individually / Other user defined math channels. |
||||||||||||||||||||
GPS OptionsThe GPS module option provides easy lap timing and lap position for track mapping with over 4000 tracks in the database. |
||||||||||||||||||||
Dash Display OptionsSuitable for replacing all of the dashboard gauges and warning lamps these TFT dash displays are available in 6" and 10" versions. Both versions have fully user configurable displays and offer a range of layouts. |
||||||||||||||||||||
Turn Your Dash/Logger Into A Rearview Mirror
|
||||||||||||||||||||
Data LoggerAn internal data logger is available, capable of recording all the analog inputs, digital inputs, ECU channels, GPS values, Currents, status of all the Power Outputs. Here an example of what the recorded data may show, during engine cranking. |
Tech Specs
- Inputs - 14 fully configurable, max 500 Hz each: 8 analogue / Digital, Digital inputs of which 2 sped input
- Power Outputs - 4 rated up to 20 A (high power) 12 rated up to 15 A (mild power) 12 rated up to 10 A (low power) 4 rated up to 35 A (half bridge) Protected for: over voltage, under voltage, over current, over temperature. Total max current: 120A
- Lin Bus - 1
- CAN Connections - 3
- Intertial Platform - 3 axis +5G accelerometer + 3 axis gyro + 3 axis magnetomter
- Internal Memory - 4 GB
- External Modules - GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Steering Wheel, Remote I/O Pushbutton Module
- External Analogue Camera Input - 2
- Body - Anodised Aluminium
- Waterproof - IP65
- Dimensions - 234.5 x 94.6 x 49.5mm
