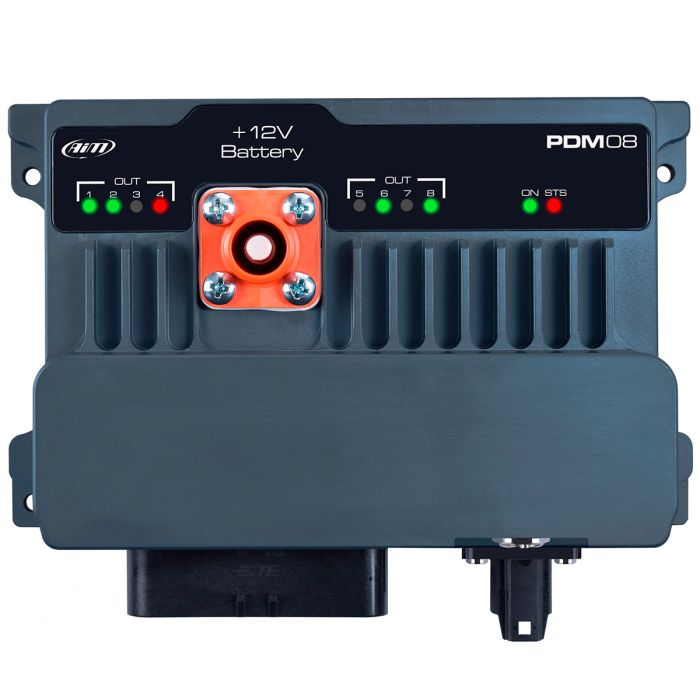

PDM08 Module (No Display or GPS)

• 8 High Side Outputs

• 6 Inputs

• Controls multiple vehicle circuits

• Data logging facility

• 8 Status LEDs

• Free Race Studio 3 Download

• ECU connections, for getting data from your ECU

• Dash controller, for easily managing a 6" or 10" dash

• Data logging, for avoiding adding another logger to your car

• 9 axis EMU platform

• GPS Module, providing automatic lap times and track positions

• Mirror and reverse camera

• TFT Display

The AiM PDM08 is a 8 channel advanced power distribution module designed to power a multitude of vehicle circuits removing the need for traditional fuse boxes and relays.

It allows for a simplified wiring harness with increased reliability and control functions. The PDM08 is available on its own or with a choice of 6" or 10" dash displays. It can also be capable of receiving data from the vehicles ECU and even includes a data logger and GPS module for lap timing and track mapping.

PDM08 Connection Example

PDM08 Power Outputs

The PDM08 features 8 high sided outputs and 4 half bridge outputs.

Each of the outputs provides feedback to the data logger to provide vital information such as open circuits, short circuits, high / low voltage, the number of fault retires and the time between the reties is user definable. All outputs can be configured as PWM's for a soft start / stop. All of the PDM circuits can be set up and monitored via our Race Studio 3 Software.

Special Functions

Some "black boxes" are available for simplifying the configuration.
For example, the Wiper may be managed by the LIN connection or using the Half Bridges.

In this case, you may take advantage by a virtual object like the following one:

PDM Inputs

If configured as Analog inputs, it is possible to activate an internal 2K Ohm resistor, for connecting most of the sensors directly.

If configured as Digital Inputs, it is possible to activate a 10K Ohm Pull Up or a 10K Ohm Pull Down.

PDM08 Data Management

The PDM08 is capable of receiving and recording data from the following sources:

ECU - Over 1000 protocols available / Digital / Analogue Inputs / Internal 9 axis EMU / GPS - Lap time and position / Expansions / Push buttons - From R1O02 module or any commercial CAN keypad / PDM outputs - Currents and status of each channel individually / Other user defined math channels.

GPS Options

The GPS module option provides easy lap timing and lap position for track mapping with over 4000 tracks in the database.

The GPS module is available with various lead lengths to suit differing applications.

Dash Display Options

Suitable for replacing all of the dashboard gauges and warning lamps these TFT dash displays are available in 6" and 10" versions.

Both versions have fully user configurable displays and offer a range of layouts.

Turn Your Dash/Logger Into A Rearview Mirror

Data Logger

An internal data logger is available, capable of recording all the analog inputs, digital inputs, ECU channels, GPS values, Currents, status of all the Power Outputs. Here an example of what the recorded data may show, during engine cranking.
