New pressure sensors. AIM offers a full range of sensors specifically designed and tested to interface with our data systems and monitor and record all vital vehicle parameters. AIM sensors are developed to withstand the harsh vibration environment of motorsport and provide reliable data.

Engine temperature, water/oil and tire temperature can be constantly monitored, as well as oil pressure and brake fluid pressure.

Brake pressure can be combined with longitudinal G-force analysis to determine braking effectiveness and the driver's ability to use it.

Ideal for measuring the pressure of any engine with the measurement range and maximum precision provided by this AiM sensor. Precise installation is recommended. We recommend having it installed by a specialized workshop. Once the sensor is installed, it must be configured using Race Studio 3 software .

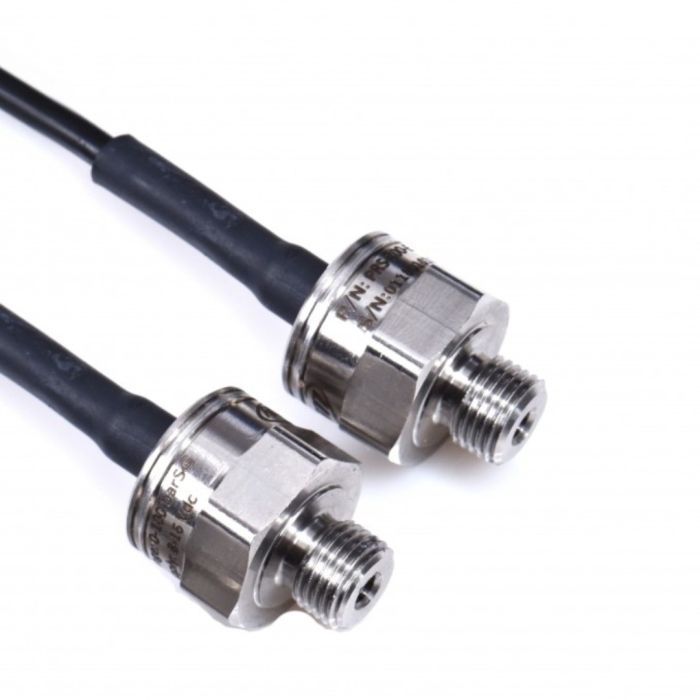

Technical Data AiM Press Sensor

Measuring range Precision Working range Temp compensated range	0-10 Bar +/- 0.5% -20ºC/125ºC -10ºC/125ºC
Exit sign	0.5V to 4.5V
Feeding	10-30v
Consumption	<10mA
Facility	M10x1
Sealed	IP66
Weight	30gr
Cable length	500mm

Brand

AIM

Weight

0.100000

Oil/Fuel Pressure Sensor 0-10 Bar - M10
