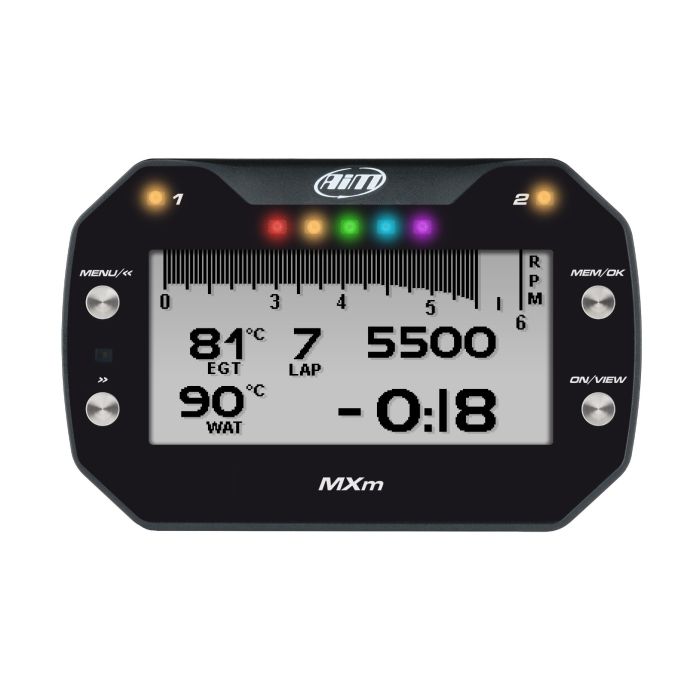

MXM Digital Display & Data Logger

MXm samples data coming from your ECU, the internal GPS, the inertial platform (accelerometer, gyro and magnetometer), 4 fully configurable analog inputs, 3 digital inputs (2 speed inputs + 1 coil RPM input) and predefined math channels.

For the most demanding, the system can be connected to the Lambda controller and to the SmartyCam HD in order to obtain the full AiM experience.

MXm features a 5 LED shift light array. Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your liking, and for each unique gear when required. MXm also features two fully configurable RGB alarm LEDs: you can choose the conditions which turn them on/off, their color, select a solid alarm - or flashing one - and the flashing frequency.

MXm features two power outputs that can drain up to 15 A each. The two power outputs can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
