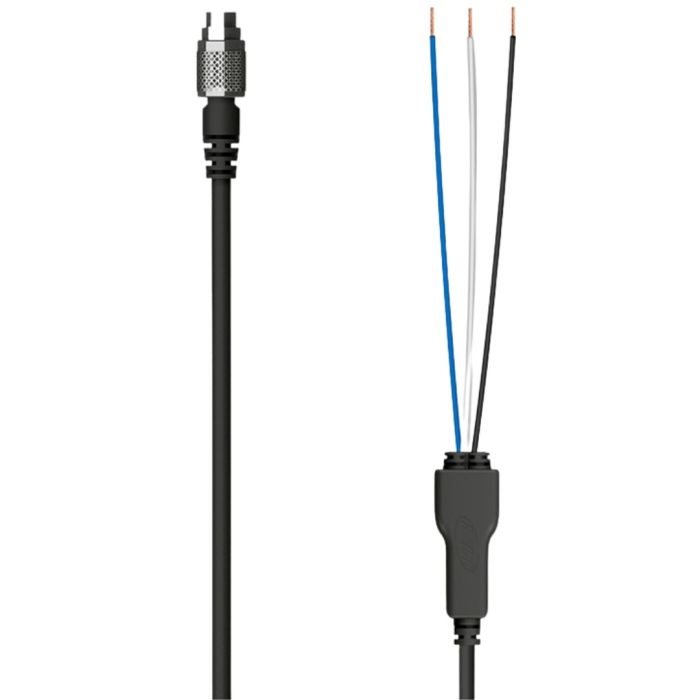

AIM EVO4S RPM + digital output cable

AiM RPM Car Coil Adapter For EVO4 - ARP04 This AiM adapter has been designed to supply RPM signals to an AiM EVO4 data logger on vehicles without an ECU. Key Features : Suitable for EVO4 logger For older vehicles Filters & converts signal AiM RPM Car Coil Adapter For EVO4 - ARP04 This AiM adapter has been designed to supply RPM signals to an AiM EVO4 data logger on vehicles without an ECU. It connects to the coil and filters the signal, reducing noise and generating the correct square compatible with the EVO4 logger. Connecting The RPM Coil Adapter Connect the cable that ends with a five-pin binder 712 male connectors to RPM input of EVO4 Connect the black cable labelled GND to vehicle reference ground Connect the red cable labelled 9-15 VDC to a switched 12V power supply Connect the white cable labelled RPM 150-450V to the coil earth trigger The yellow cable labelled DIGIT OUT is EVO4 digital output
