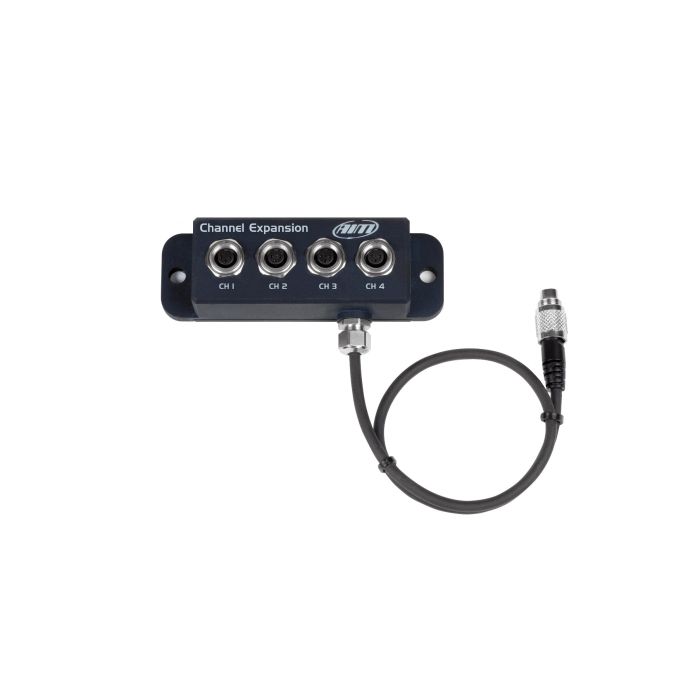

Through the MyChron Expansion MyChron4 can be connected to another AIM system (LCU Lambda controller, GPS, SmartyCam the on-board camera) or a Data key for data download. MyChron Expansion powers MyChron4 and its peripherals with an external battery, avoiding logger internal battery consumption. Features four inputs to connect MyChron4 to an equal number of additional channels.Sample data outcoming from:
• Exhaust gas valve position sensor (very important to understand at which RPM value the exhaust port opens)
• Wheel speed sensor: the first input on the left can be configured also as digital input
• No contact brake pedal position sensor
• No contact throttle pedal position sensor (to know if and when to push harder on the accelerator)
• Brake pressure sensor
• Water temperature or cylinder head temperature (PT100 thermo resistor)
• Steering angle potentiometer (to highlight over/under steering situations)
• Brake pedal potentiometer
• Throttle pedal potentiometerDimensions: 127x24x33 mm, Weight: 194 g
• Exhaust gas valve position sensor (very important to understand at which RPM value the exhaust port opens)
• Wheel speed sensor: the first input on the left can be configured also as digital input
• No contact brake pedal position sensor
• No contact throttle pedal position sensor (to know if and when to push harder on the accelerator)
• Brake pressure sensor
• Water temperature or cylinder head temperature (PT100 thermo resistor)
• Steering angle potentiometer (to highlight over/under steering situations)
• Brake pedal potentiometer
• Throttle pedal potentiometerDimensions: 127x24x33 mm, Weight: 194 g
| Brand | AIM |
|---|---|
| Colour | No |
| Weight | 0.100000 |
