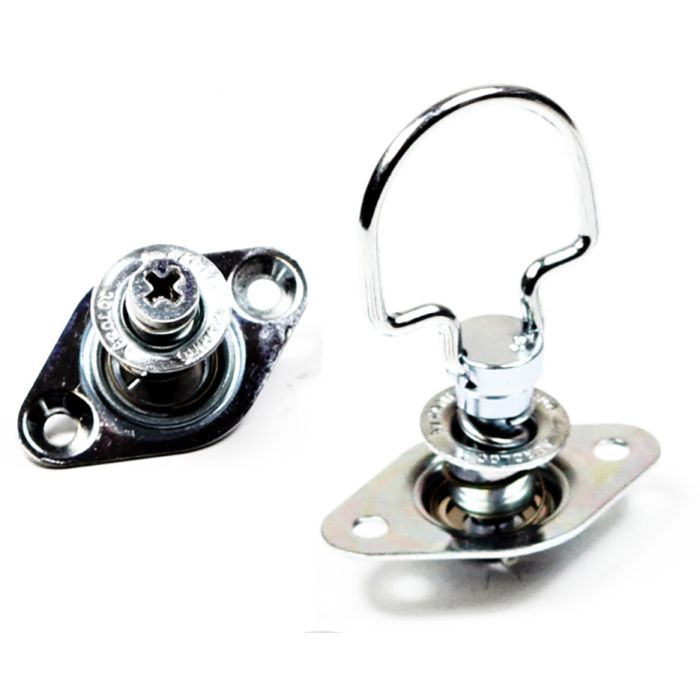

1/4 Turn Fasteners Stud

AeroLoc 1/4 Turn Fasteners stud only. Murray Motorsport do supply the appropriate kit with relevant receptical and shim sizes included. Please see related products.

To select the correct stud size you will need to establish the Grip. This is the panel and frame thicknesses combined: P + F = G. Once you have determined your grip size (G), select the correct size from the drop down list above.

200-5107 - G = 3.55-5.85mm (0.14-0.23in.) and 11.95-12.70mm (0.47-0.50in.)
200-5108 - G = 5.85-6.6mm (0.23-0.26in) and 12.70-13.50mm (0.50-0.53in.)
200-5109 - G = 6.9-7.3mm (0.26-0.29in) and 13.50-14.20mm (0.53-0.56in.)
200-5110 - G = 7.3-8.15mm (0.29-0.32in) and 14.20-15.00mm (0.56-0.59in.)
200-5111 - G = 8.15-8.9mm (0.32-0.35in) and 15.00-15.75mm (0.59-0.62in.)
200-5112 - G = 8.9-9.65mm (0.35-0.38in) and 15.75-16.50mm (0.62-0.65in.)
200-5113 - G = 9.65-10.4mm (0.38-0.41in) and 16.50-17.30mm (0.65-0.68in.)
200-5114 - G = 10.4-11.2mm (0.41-0.44in) and 17.30-18.00mm (0.68-0.71in.)
200-5115 - G = 11.2-11.95mm (0.44-0.47in) and 18.00-18.80mm (0.71-0.75in.)
